HDL-M/PT4RA.1-B

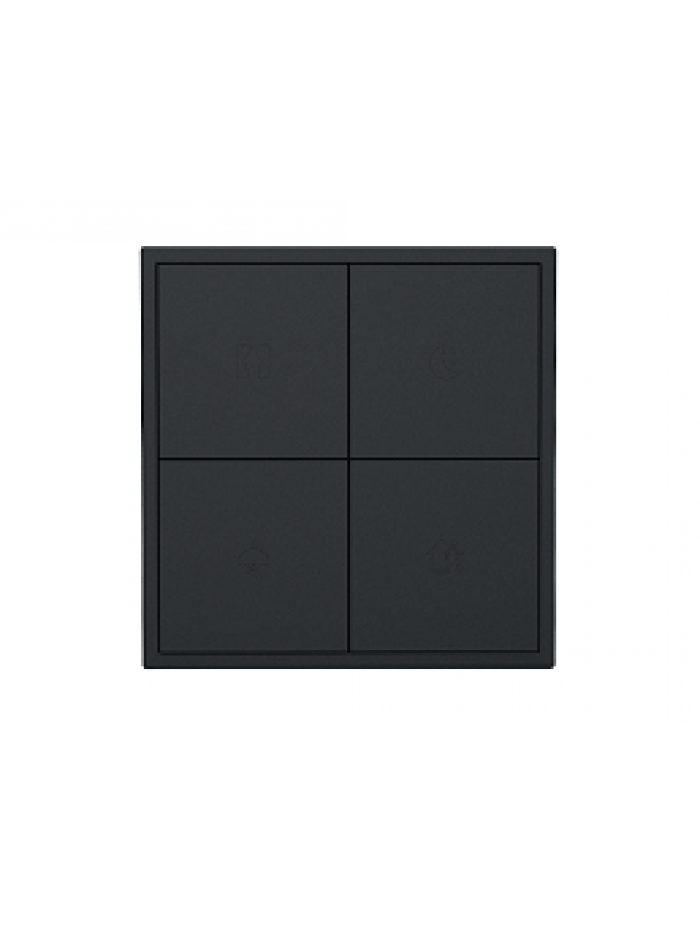

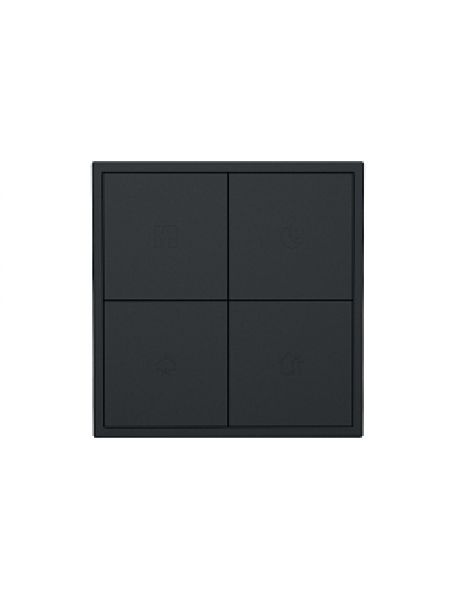

The KNX Tile 2.0 push button panel is supplied in 4 configurations 1 - 2 - 4 - 4x2 buttons. The keyboards can be equipped with laser labeling on each individual key. A standard supply does not include icons, these can be supplied free of charge when ordering (consult the appropriate attachment for the codes) or ordered separately at the indicated cost.

Each button incorporates RGB backlighting, color and brightness level can be set by ETS or manually on the panel.

The pushbutton panels support lighting, motorization, scenarios, audio commands and much more.

Functions

• Integrated temperature sensor.
• Integrated proximity sensor.
• 1/2/4 / 4X2 position push button with built-in backlight.
• Individually customizable color and intensity level.
• Single or combined mode.
• Control modes: switching, dimmer, motorizations, customizable, scene, sequential, value sending, threshold control, string control (14 bytes), alternating control, impulse control, RGB control, fan and combined control.
• Support online update.


The panel must be mounted on the wall box 502 with BCU (M / PTCI.1) and must be programmed with ETS software.
