BX-TU-SCR

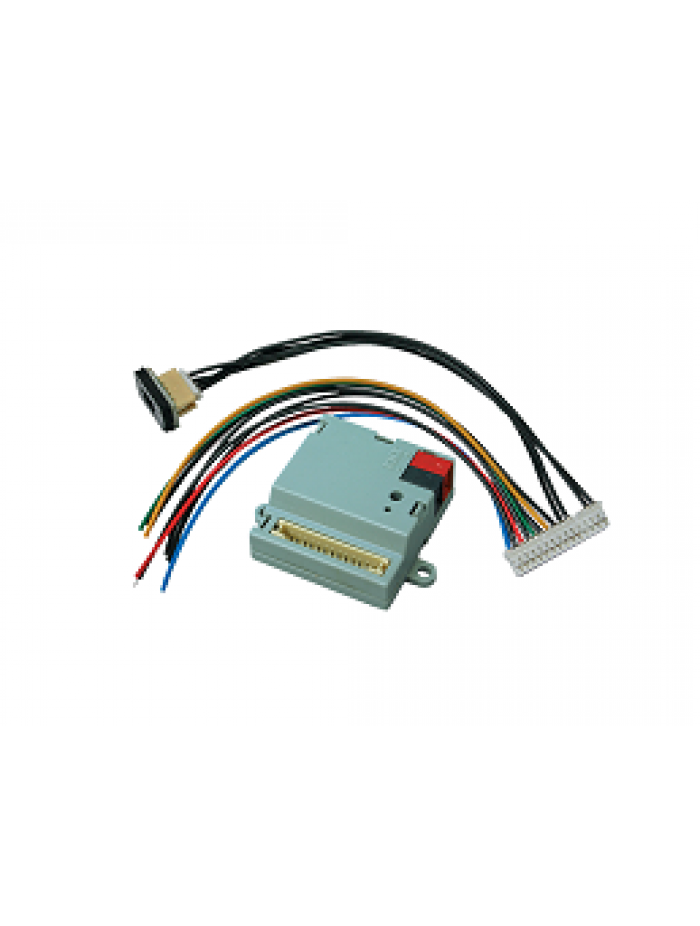

BX-TU-SCR is the button interface of Blumotix which it is possible to connect a temperature and humidity probe to perform the functions of thermostat, humidity control and dew point control in the environment.

The module has the characteristics of a normal button interface, thermostat control, which is flanked by the functions deriving from the presence of the humidity probe.

The BX-TU has no local control commands. It requires a supervision device present in the system to proceed with setting and display operations, such as a Touch Panel or a minisever.

The temperature probe provides an accurate reading of the ambient temperature and provides the necessary adjustments for climate control. BX-TU is equipped, with a solid state digital temperature and humidity probe, capable of temperature measurements between -40 ° C and 125 ° C, and of relative humidity between 0% and 100%. and does not need any calibration procedure.

It is small and can be installed on the back of the covers of traditional civil series, suitably drilled to allow a correct measurement of the room temperature. The version with humidity probe is able to measure the dew temperature.

ETS data

- button interface functions

- thermostat functions as for BX-TE

- management of 4 humidity thresholds with relative alarm

- environmental humidity measurement with 2 Byte object

- management of 4 dew-point thresholds with relative alarm
