BX-TE-SCR

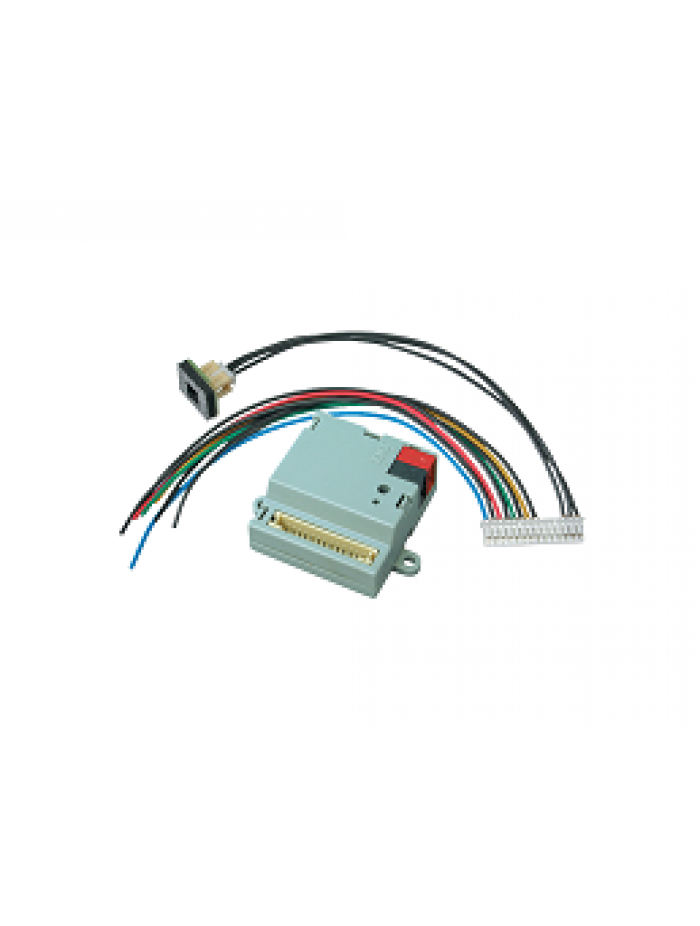

BX-TE-SCR is a Blumotix button interface with a temperature probe to perform the thermostat functions.

The module has the characteristics of a normal button interface, with the additions necessary to operate as a thermostat.

The thermostat has no local control commands and does not have a display for data visualization.

The setting and display operations are carried out by a supervision device present in the system, such as a Touch Panel or a miniserver.

This essential approach is greatly appreciated by users who do not like to fill the walls of the rooms with commands.

The temperature probe provides an accurate reading of the ambient temperature and provides the necessary adjustments for climate control.

In fact, BX-TE is equipped with a solid state digital temperature probe capable of performing extremely accurate measurements, with values ​​between -55 ° C and 125 ° C and resolution 0.5 ° C and it does not require any calibration procedure .

It is small and can be installed on the back of the covers of traditional civil series, suitably drilled to allow a correct measurement of the room temperature.

The version with humidity probe is able to measure the dew temperature.

ETS data

- button interface functions

- selection of the thermostat mode, whether single or double

- switch-on and off command for thermostat with 1 bit object

- summer winter mode selection with 1 bit object

- setpoint temperature setting with 2 Byte object

- instant temperature reading with 2 Byte object

- 1 bit on off output

- further selectable output between 3-bit or linear fan command with 1-byte command
