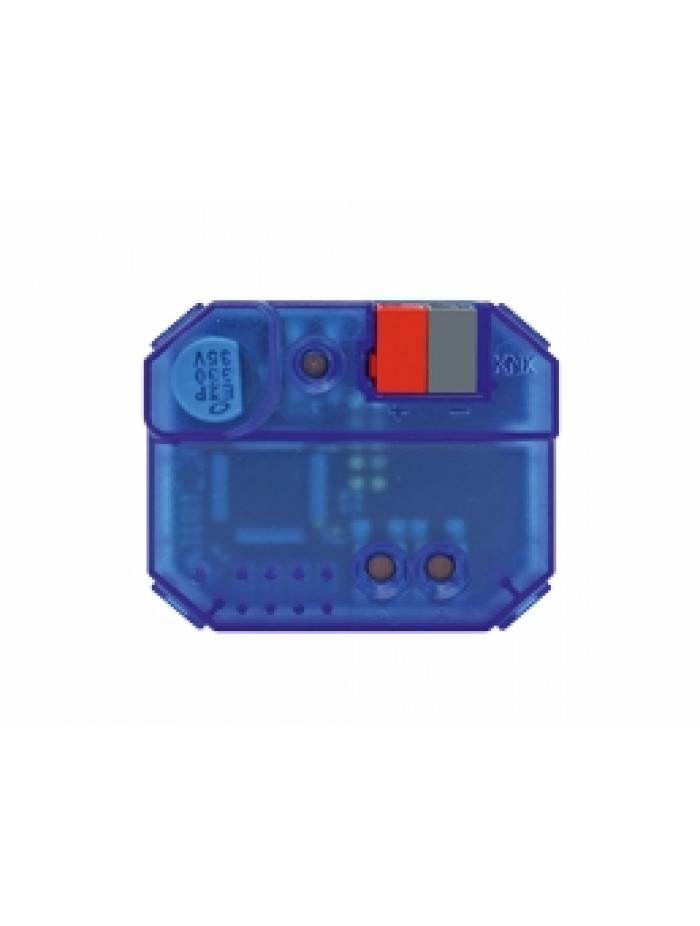

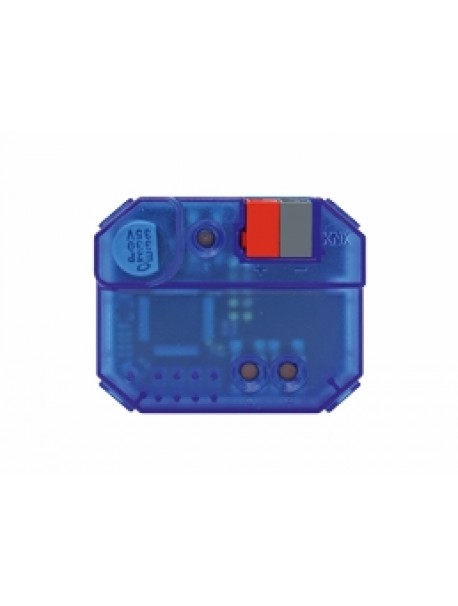

TP KNX - RF Media Coupler (9070868)
- 291.00€ (Ex Tax)
- Availability: 2 (Available)
- Brand: THEBEN
- Product Code: 9070868
- Weight: 0.14 kg
- Reward Points: 235
TP Coupler KNX - RF (9070868)
Description
It connects the KNX RF devices of a radio line with the twisted pair KNX bus, the voltage supply is via KNX bus voltage, supports Longframes for "KNX Secure" and at the same time allows you to download large applications quickly. The range of the device is max. 30 m inside the building. Thanks to the repeater function, the range can be increased.
Technical data
- Operating voltage KNX Bus voltage
- Mounting type Recessed
- Ambient operating temperature -5 ° C ... 45 ° C
- Storage temperature -25 ° C ... 55 ° C
- Insulation class III
- Type of protection IP 20
| Data sheet | |
|---|---|
| Secure | Yes |
| KNX Function | Coupler RF-TP |
| Laying | Recessed |
- File_vd_media_coupler_theben (100.01KB) (Only for logged users)
- Data_sheet_media_coupler_en (775.16KB) (Only for logged users)
