Thermostat CHTC-86/01.1.22

Temperature control panel is a device to control indoor temperature .It adjust the room temperature and relative humidity according to the measured temperature and relative humidity, generally implemented by controlling indoor temperature controller and fan coil actuator one the bus. Temperature control panel closely bound up with our living environment. For example, in an air-conditioned room, people would feel comfortable only the room temperature and relative humidity is under in a certain range. Then we can monitor the current actual indoor temperature, relative humidity through the panel, if it is beyond control, the temperature control panel will send a signal to adjust the indoor temperature and humidity by air condition. It is also widely applied in other industries, such as food industry, temperature and humidity are essential, greenhouse and other humidity-related industries.

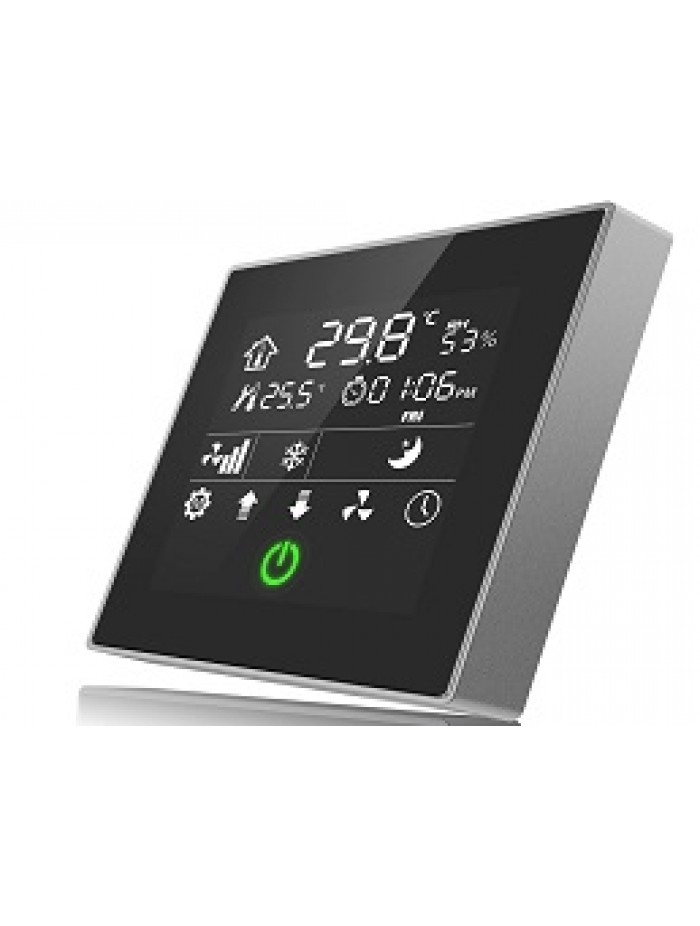

User can adjust the indoor temperature according to their needs by capacitive touch buttons, LCD screen displays the status of the current temperature control.

Temperature control panel mainly used in building control systems and installed with EIB / KNX bus and other devices together as a system. It’s connected directly to the terminal via the EIB bus, no need of additional power supply. Standard 86 wall-mounted installation. You can use the engineering design software ETS (version above ETS3 ) with VD3/VD4 ETS files to allocate physical address and set up Parameter.

Main function summarized as below:

• Capacitive touch buttons, LCD display
• Selected internal and external temperature sensor
• Basic and additional heating and cooling temperature control function
• Relative and absolute room temperature adjustment function
• Variety of temperature control mode,continuous PI control, switching PI control and on-off control
• With PI parameters self-tuning and manual tuning two kinds of control modes
• Timing room temperature control switch mode and transmit data function
• Manual and automatic three-speed fan control
• Temperature and humidity threshold function
• Logical function
• Three way binary input for controlling the switching, dimming, curtains and scenes
• one for external NTC thermistor temperature sensor input
