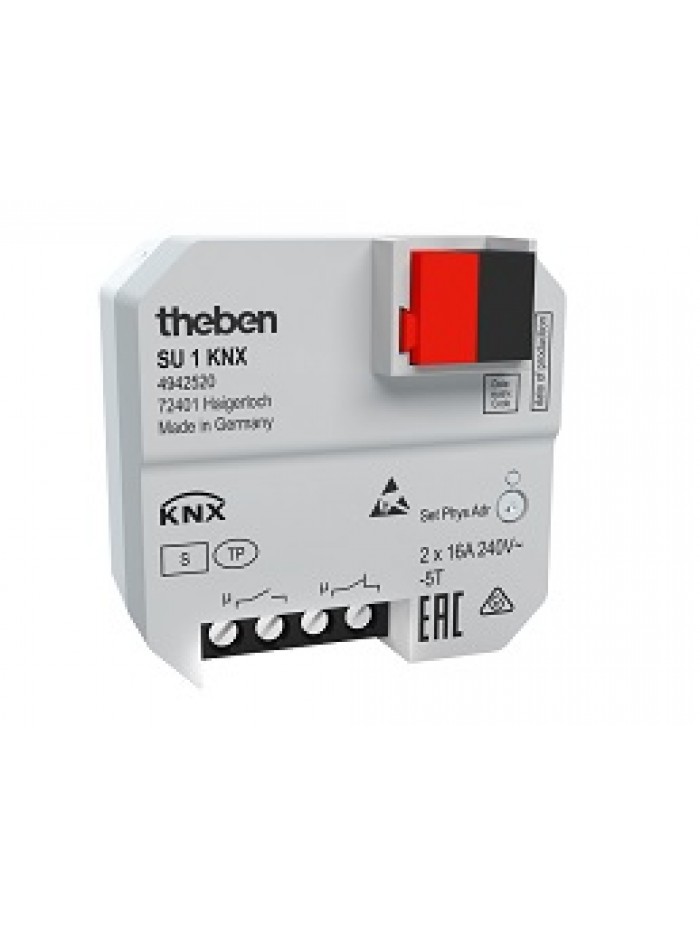

SU 1 KNX Recessed Output Actuator (4942520)
- 1-way flush-mounted switch actuator KNX
- Adjustable features: NC/NO contact, switching, delayed switching, pulse function

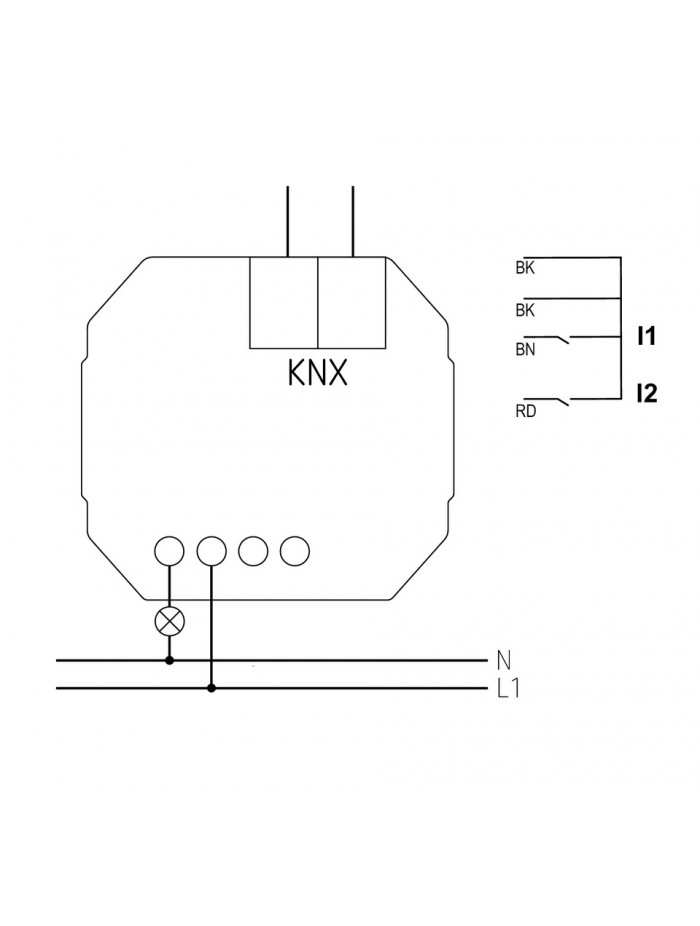

- 2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)
- The binary inputs are assigned to the switch output as standard (function test before programming)
- Integrated temperature monitoring for increased operating safety, e.g. in the event of overload
Operating voltage KNX
| Bus voltage
| Operating voltage
| 230 V AC 50 – 60 Hz
| Frequency
| 50 – 60 Hz
| Installation type
| Flush-mounted
| Type of connection
| Terminal screws | Bus connection: KNX bus terminal
| Number of channels
| 1
| Type of contact
| 16 A
| Incandescent/halogen lamp load
| 2000 W
| Halogen lamp load
| 1800 W
| LED lamp < 2 W
| 50 W
| LED lamp 2-8 W
| 600 W
| LED lamp > 8 W
| 600 W
| Inrush current
| max. 740 A / 200 µs
| Type
| Base module
| Type of protection
| IP 20
| Protection class
| II
|
|
| Data sheet |
| # Input |
2 |
| # Output |
1 |
| KNX Function |
Binary Output |
| Laying |
Recessed |
-
