SELS-COBNW320-24-IP20B

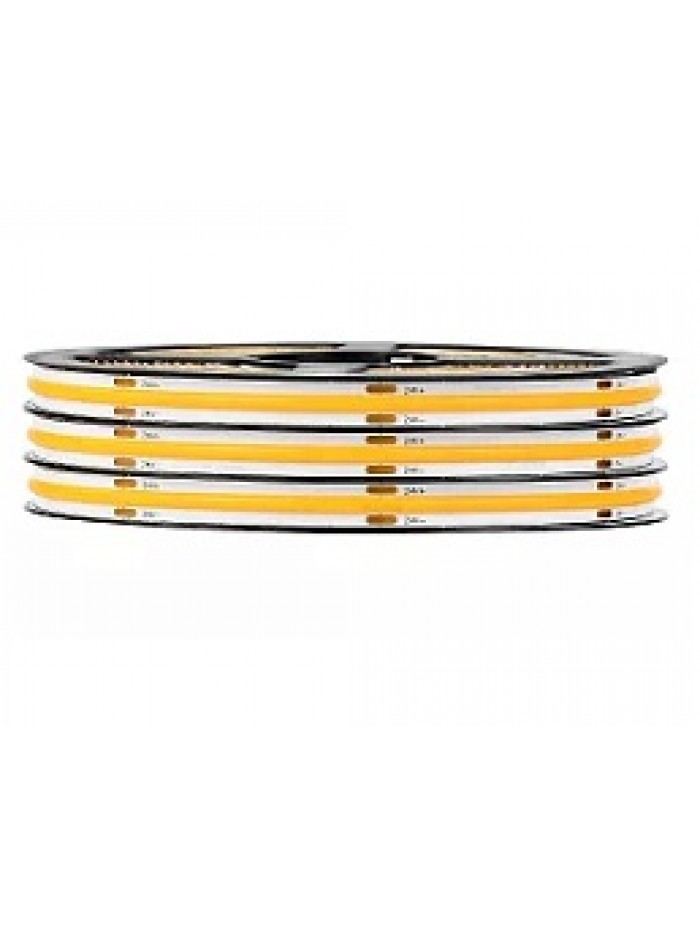

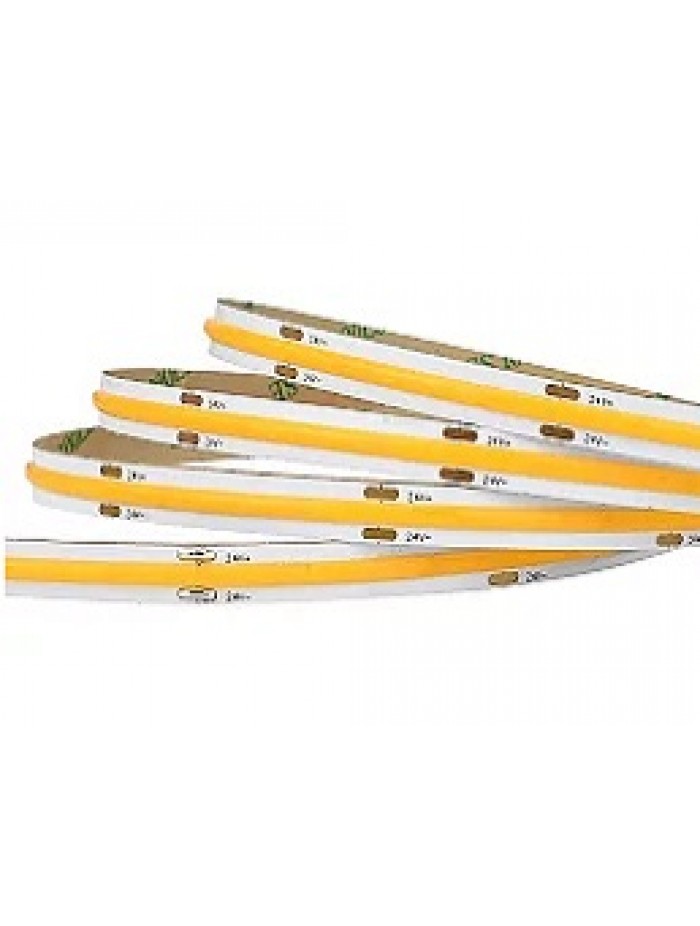

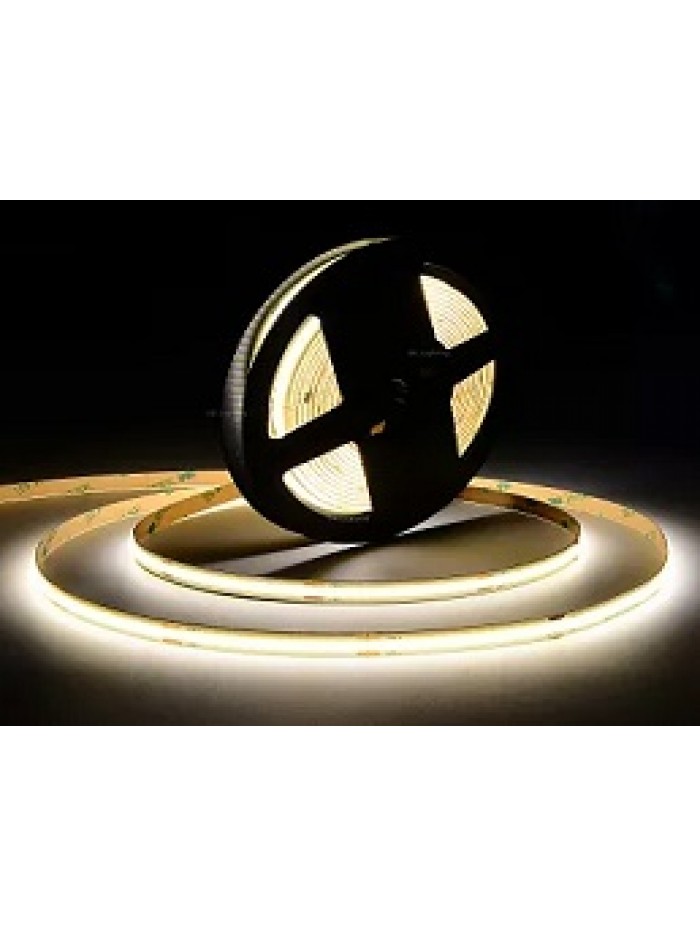

The COB strip has 320 LEDs/m, a width of 8mm with a power of 8W/m. Available with IP20 / IP65 / IP67 / IP68 protection, it can emit warm white (3000 ° K), natural white (4000 ° K) or pure white (6000 ° K) light.

Equipped with high quality LEDs, it guarantees high brightness, low lighting decay, life span of more than 50000 hours. All materials are RoHS compliant, easy to install thanks to 3M double sided tape, can be bent freely without exceeding a diameter of 30mm.

The COB strips guarantee uniform illumination and a 180 ° beam width.

Applications

1. Decorative lights

2. Illuminated signs

3. Backlighting or plaster veils

4. Stage decoration

5. Lighting of passageways in hotels, B&Bs shopping centers, offices

6. Lighting of furniture

7. All those applications where low power line of light effect is required.

Characteristics:

Model SELS-COBX320-24-YB

Working temperature (℃) -20 - 50

Reel length 5m

PCB width 8mm

50mm cutting pitch

180 ° beam angle

IP grade 20/65/67/68

Color temperature (CCT)  3000K / 4000K / 6500K

Dimmer yes

Input voltage (V) DC 24V

CE EMC FCC PSE RoHS certification

Warranty (Year) 2 YEARS

Luminous efficacy (lm / w) 80-90 LM / W / 105-115 LM / W

Life time (now) 50,000

Lamp power 8W / mt

CRI (Ra>) 80
