Strip LED CCT color changing SELS-5630CCT120-24-IP20

  • 35.00€ (Ex Tax)
  • Availability: 23 (Available)
  • Brand: SE
  • Product Code: SELS-5630CCT120-24-IP20
  • Weight: 0.05 kg
  • Reward Points: 28

SELS-5630CCT120-24-IP20

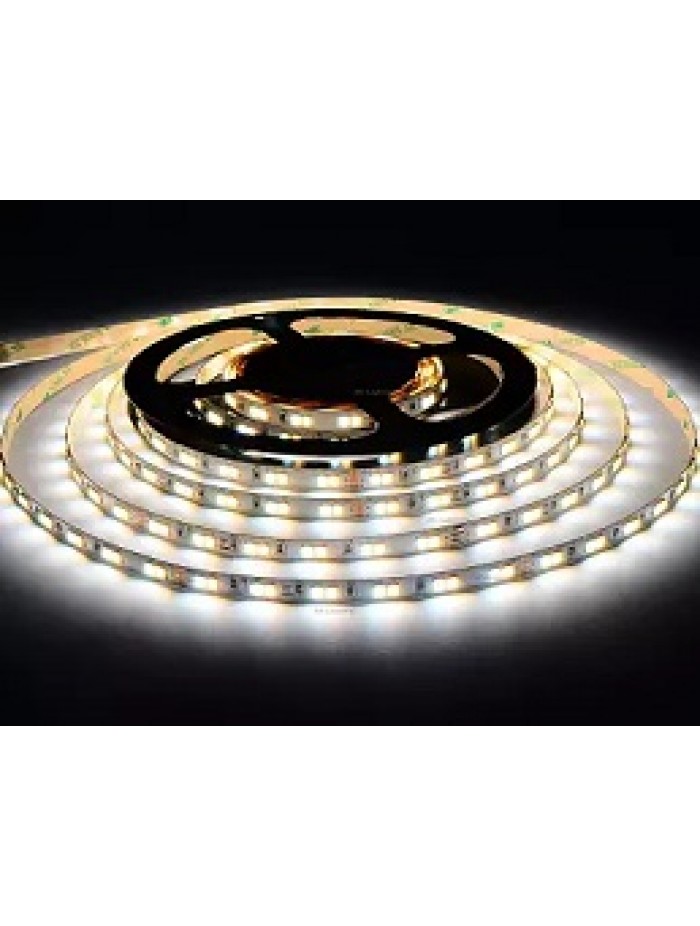

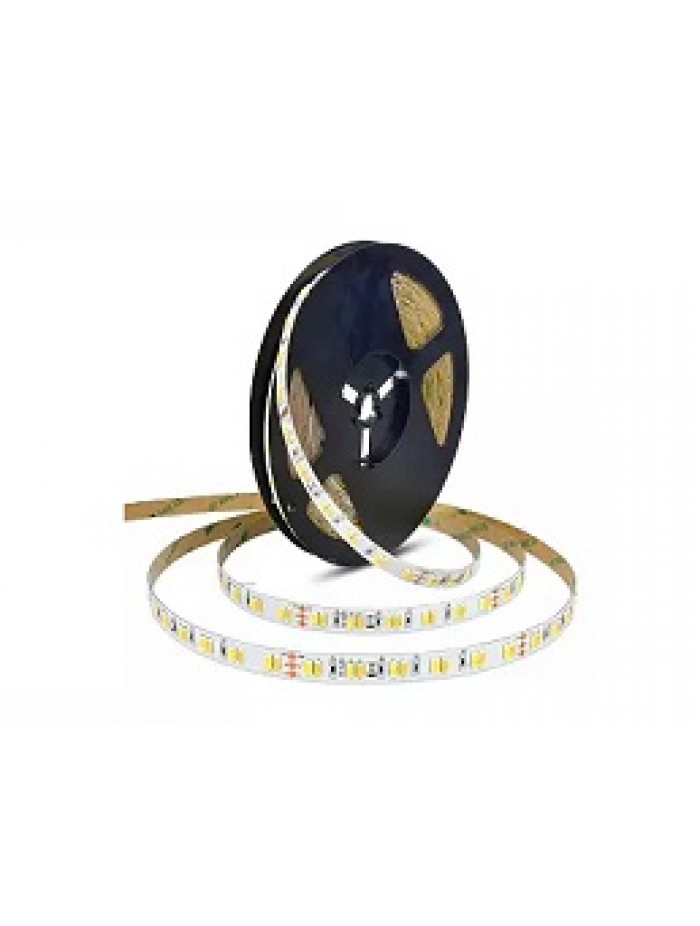

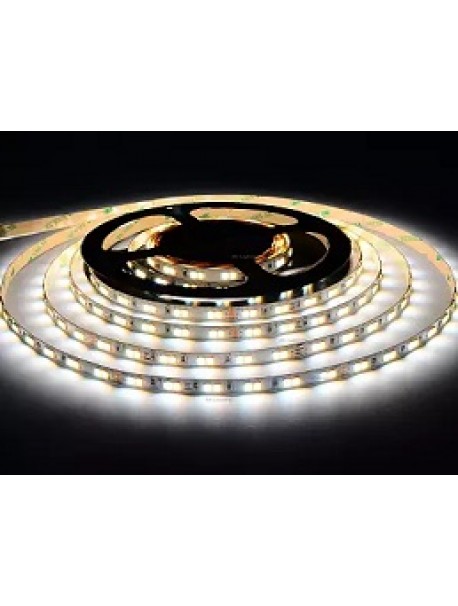

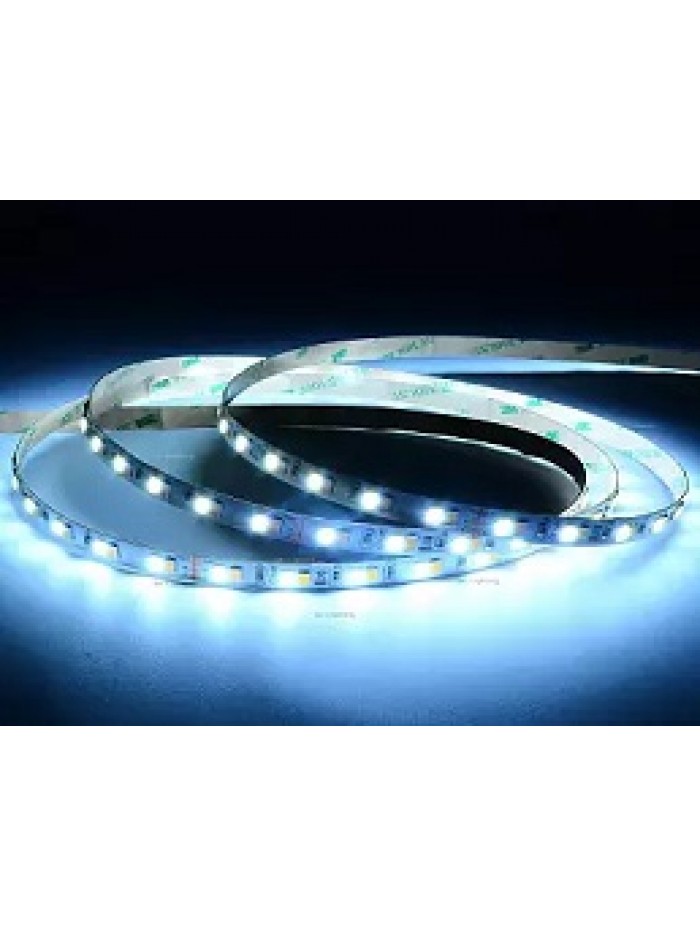

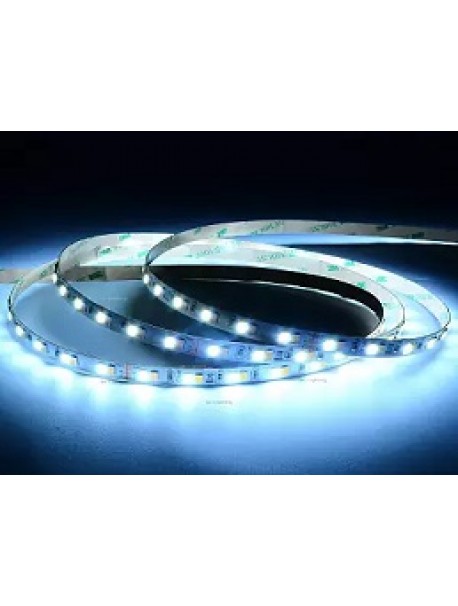

The two-color strip LED is made with 120LEDs model 5630 (60 type WW and 60 type PW). It can be supplied with IP20 / IP65 / IP67 / IP68 protection degree. Thanks to the double LED it is possible to have from warm white (3000 ° K), passing from natural white (4000 ° K) up to pure white (6500 ° K).

The main features of the CCT strips are:

1. Super bright 5630 SMD LED top 60pcs 3000K + 60pcs 6500K, high intensity and reliability.

2. 5m / roll.

3. 3 years warranty

4. Cutting pitch 100 mm.

5. Low energy consumption

6. Flexible bending tape

7. Fully uniform light diffusion, solving the problem of uneven brightness

8. High brightness, low power, long life, easy installation.


Applications:

1. It is widely used as decorative lights

2. illuminated signs

3. Backlight

4. Exhibitions, stage decoration

5. Landscape lighting in hotels, B & Bs, shopping centers, offices.

6. Applications of chromotherapy


Specifications:

CCT series (color change)

Code SELS-5630CCT120-24-Y

DC 24V voltage

LED Qty / mt 120pcs

Watt / mt 24W

FPCB Width 10mm

Cutting unit 100 mm

Efficiency 115lm / W

Lumen / mt 2760LM

Color Two colors 60 pieces 3000K + 60 pieces 6500K

Data sheet
Application CCT
CCT From 3000°K to 6500°K
CRI 80
IP. IP 20
LED Type 5630
Lumen/W 115
Number LED/m 120 - 60 WW + 60 PW
Power Supply 24 VDC
Strip Width 10 mm
W/m 24
