AUDIO-DINSTp

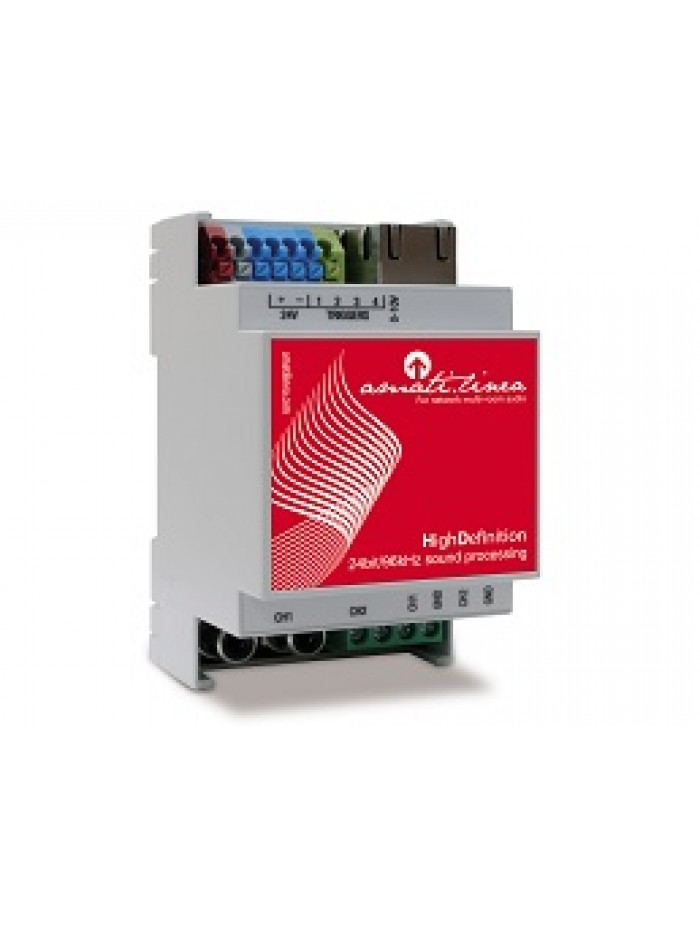

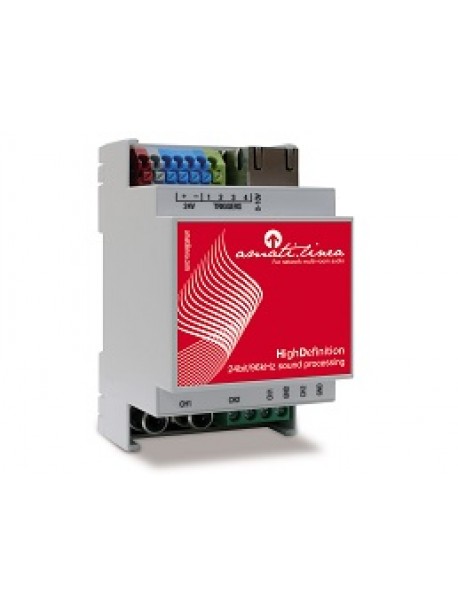

Amati.line Streaming player plays all your network music in HD quality ensuring smart features, power and convenience.

Streaming Player plays built-in 32GB flash music, UPnP / DLNA server, Airplay, FTP server, Internet radio. KNXnet / IP support enables fast and easy audio control function, Internet radio, mapping of specific tracks and folders to KNX group addresses.

Commissioning (for more information refer to the manual):

• Connect the Ethernet cable to the LAN port (make sure the cable is interconnected with the local network)
• Connect the power supply to the Streaming Player (red pole to + 24V, black - GND).
• Connect the external amplifier to one of the Line-out pairs of outputs
• To verify that the wiring is done correctly, you can play any music file on your iPhone / iPOD and share it to play it on a remote Airplay device (amatilinea).
• Streaming Player is configured as a DHCP client. It uses Apple's Zero-config utility called "Bonjour" which enables automatic discovery of computers, devices and services over IP networks. iPod, iPhone. For iPad use the utility named Discovery (the server will be discovered in the ROAP service). On Windows 7 computer you can see the Player as a network share with name amatilinea, right click on it, Properties and you will see its IP address. Or you can just check your DHCP server's list of leases to find the IP assigned to Streaming Player. More see here: http://openrb.com/discover-ip-of-logic-machine-or-streaming-player/
• Enter the Streaming Player home page by typing the IP address into your web browser.
• DLNA / UPnP / Airplay services are enabled by default in Streaming Player quick setup
• Depending on the number of music files, the device will update its local database in the Audio Player menu and you can start playing the songs
• Connection via remote user interface (also called digital media controller) from iPod / iPhone / iPAD (MPoD / MPaD or any UPnP controller app available as freeware on App Store like Kinsky), Android based phones (Droid MPD), PC (Ario, Kinsky). Choose the server (online or via IP) and start creating your playlists, controlling music etc. Update the player database with the Update Database command from your remote. Initial database update may take some time.
• Map music control functions on KNX in Network Configuration-> Network -> KNX Audio Control Menu. The default login and password to access the network configuration are admin / admin

Please note that you need to use an external KNX IP router (eg Logic Machine 5) to access KNX TP, as Streaming Player only supports KNXnet / IP (TP is not used due to sound quality distortions).
