Smart Power Supply KNX IPS640 with auxiliary power supply
- 270.90€ (Ex Tax)
- Availability: 3 (Available)
- Brand: APRICUM B
- Product Code: IPS640 KNX
- Weight: 0.5 kg
- Reward Points: 253

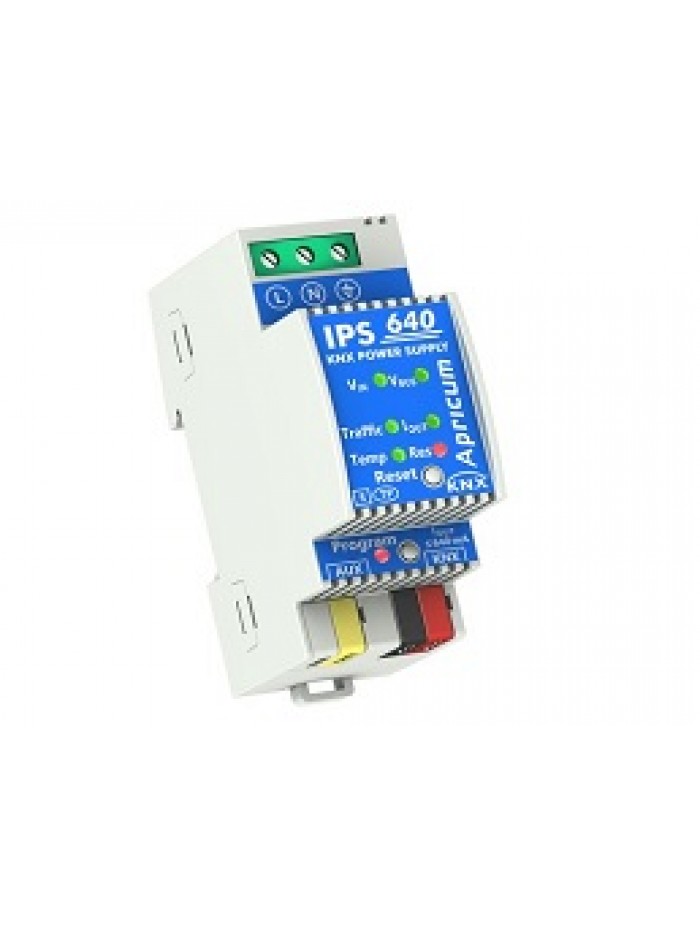

IPS640 KNX Power Supply
The compact KNX power supply IPS640 features an choked and a unchoked output. For diagnostic purposes, bus voltage, output current, device temperature and several times of operation are monitored.
- Overload and short circuit protection
- Additional unchoked auxiliary power output
- Bus line reset via local push button or remote
- multi colour LEDs show status information
- Leakage loss < 5 W
- compact housing (2SU)
- KNX-output: 28V -31V DC, 640mA
- Powered by 230 V AC
- DIN rail housing 2 SU
- KNX-certified
- CE-compliant
- integrated chocke
- ETS4 or higher
- diagnostic functions
- messurement of output voltage, current, temperature, bus traffic
- communication object holds current values
- configurable alarm levels
- sending of alarms via group objects
| Data sheet | |
|---|---|
| Auxiliary Output | Yes |
| DIN Modules | 2 |
| Power Supply | 230 Vac |
| Secure | no |
| KNX Function | Smart Power Supply |
| Laying | DIN Rail |
- File-vd-IPS640 (61.57KB) (Only for logged users)
- Data-sheet-ips640 (770.55KB) (Only for logged users)
