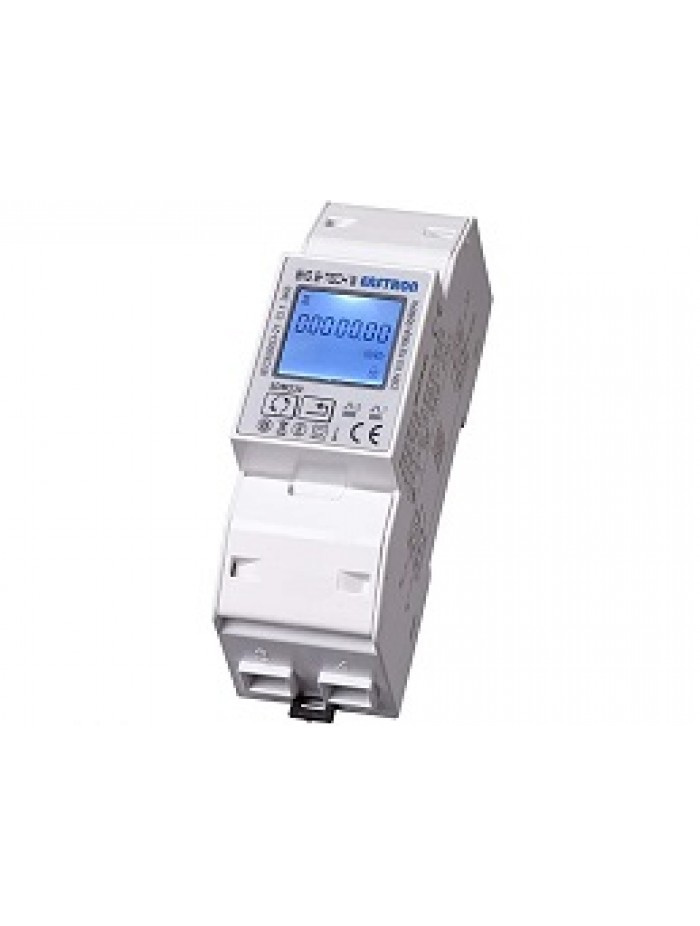

SDM230-MODBUS-MID-V2

SDM230-Modbus-MID-V2 offers a low-cost solution for measuring single-phase circuits up to (100A).

The SDM230 series measures a wide range of parameters including voltage, current and power factor.

There are also 3 models available depending on the output required, ranging from a pulse only output (SDM230-Pulse), Modbus RTU (SDM230-Modbus) and MBus (SDM230-MBus). All SDM230 meters are housed in a 2-gang DIN rail mounted housing. They are also complete with sealable terminal covers to prevent any tampering with the connections.

Measures

• Voltage (V)
• Current (A)
• Active power (kW)
• Power Factor (PF)
• Frequency (Hz)
• Import active energy (kWh)
• Export active power (kWh)
• Total active energy (kWh)


Features

• 100A Single-phase direct connection
• MID certificate (B and D)
• Bi-directional measurement for kW and kWh
• Configurable pulse output (Inport, Export, Nett kWh)
• RS485 Modbus or M-bus variants available
• Multi-parameter measurements
• Simple setup and operation


Certifications

• MID: EN50470-1 and EN50470-3 Class B
• EMC: EN61326-1 and EN61326-2-3
• LVD: EN61010-1 and EN61010-2-3
