BX-CI01

The new Blumotix built-in actuators fall into the KNX Secure category.

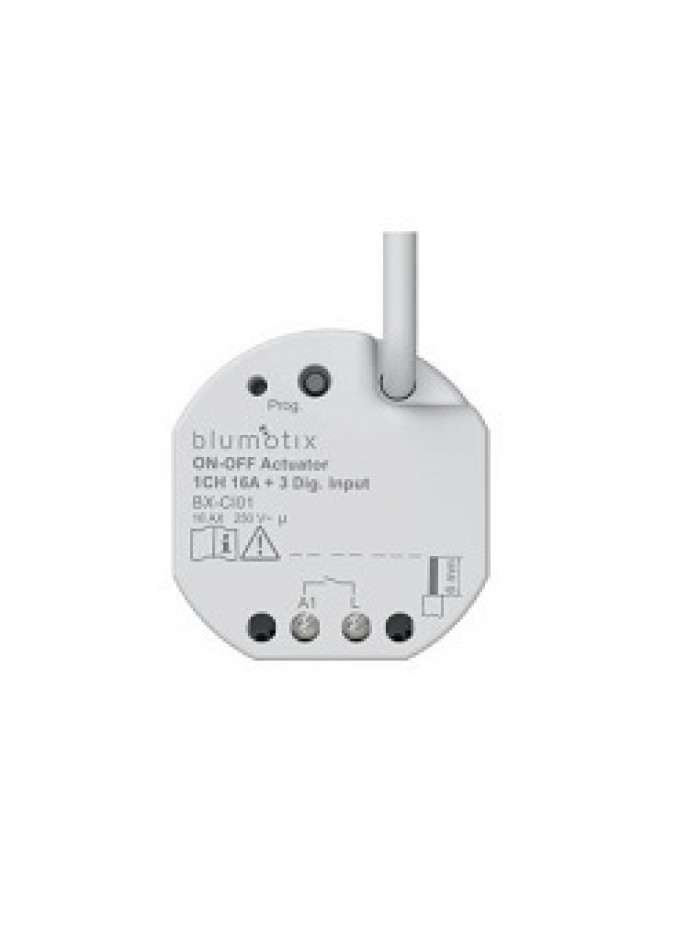

BX-CI01 is a 1-module 16 A KNX on/off actuator. The actuator is also equipped with two binary inputs for mounting in a switch box. Potential-free contacts can be connected to them. The two inputs can be blocked independently of each other or perform various functions. BX-CI01 also has an additional binary input, allowing for example the connection of a remote temperature probe (NTC).

Technical features

• Output via KNX telegrams or controllable external control inputs
• Three external control inputs on the connection of contacts without power supply or condensation/leak sensors
• NTC temperature probe connectable to input 3
• Probe type R25°C 33 KΩ – B25/100 4300K
• Power supply via KNX, no additional supply voltage necessary
• Compatible with KNX Data Secure


KNX functions

• NC contact and NO contact operation
• Feedback function
• Link and force execution function
• Central switching functions
• Timed functions: activation/deactivation delay, staircase light switch with pre-warning function
• Scenario function
• Hour meter
• Switching control function
• Control function Brightness adjustment (including color temperature adjustment)
• Venetian control function
• Transducer control function (1 byte, 2 byte, 3 byte and 6 byte, including default values ​​for RGBW and color temperature)
• Scenario activation control function
• Control function 2-channel control
• Control function External control of a controller
• Blocking functions
• Adjustable suppression time
