Model

S-100-5

S-100-12

S-100-15

S-100-24

S-100-36

S-100-48

output

DC voltage

5V

12V

15V

24V

36V

48V

Voltage tolerance

±2%

±1%

±1%

±1%

±1%

±1%

Rated current

20A

8.5A

6.7A

4.5A

2.8A

2A

Current range

0~20A

0~8.5A

0~6.7A

0~4.5A

0~2.8A

0~2A

Rated power

100W

102W

100.5W

108W

100.8W

96W

Ripple&noise

100mvp-p

120mvp-p

120mvp-p

150mvp-p

150mvp-p

150mvp-p

DCvoltage ADJ.range

-9%~+10%

±10%

±10%

±10%

±10%

±10%

input

Voltage range

90~132VAC/180~264VAC(selected by switch)，255~373VDC

frequency

47~63HZ

AC current

2.4A/115VAC，1.2A/230VAC

efficiency

78%

80%

80%

82%

82%

83%

Inrush current

Cold start current 18A/115VAC，36A/230VAC

Leakage current

< 3.5mA/240VAC

protection

overload

Rated output power115%~150%  start over load protection

protection type：cutoff output，recovery after restart power

-----

-----

-----

-----

-----

-----

environment

Working temp,humidity

-10℃~+60℃，20%~90%RH

Storagetemp,humidity

-20℃~+85℃，10%~95%RH non-condensing

Withstand vibration

10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes

safety

Withstand voltage

I/P-O/P：1.5KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC

Fitstandard

Safety standard

Fit UL1012

EMC standard

符合EN55022，CLASSA

others

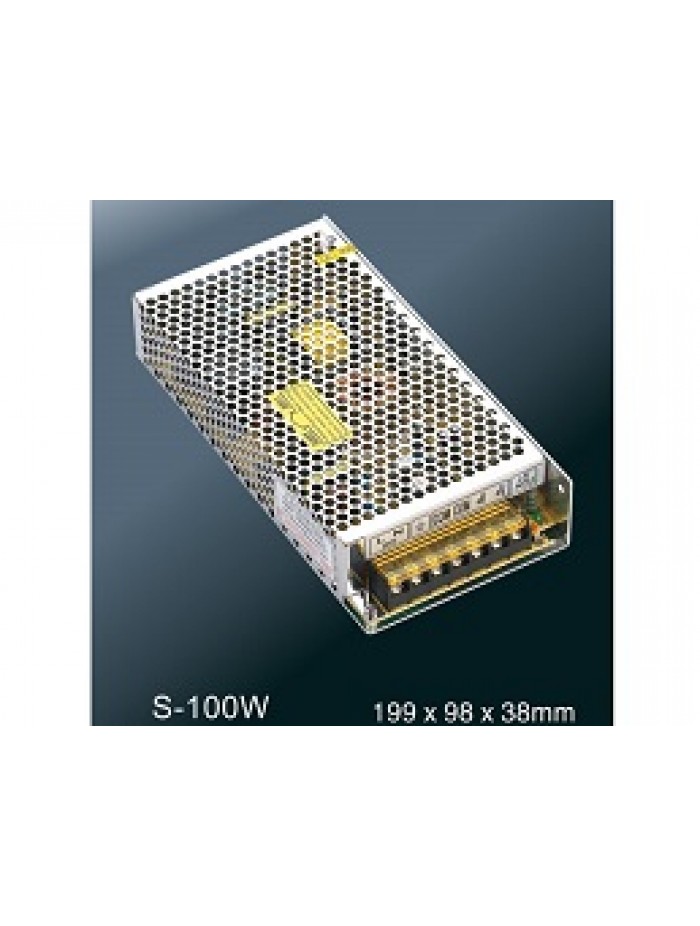

Dimension

199*98*38mm (L*W*H)

Weight/packing

0.6kg/30pcs/19kg/0.034 m³/1.2CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
