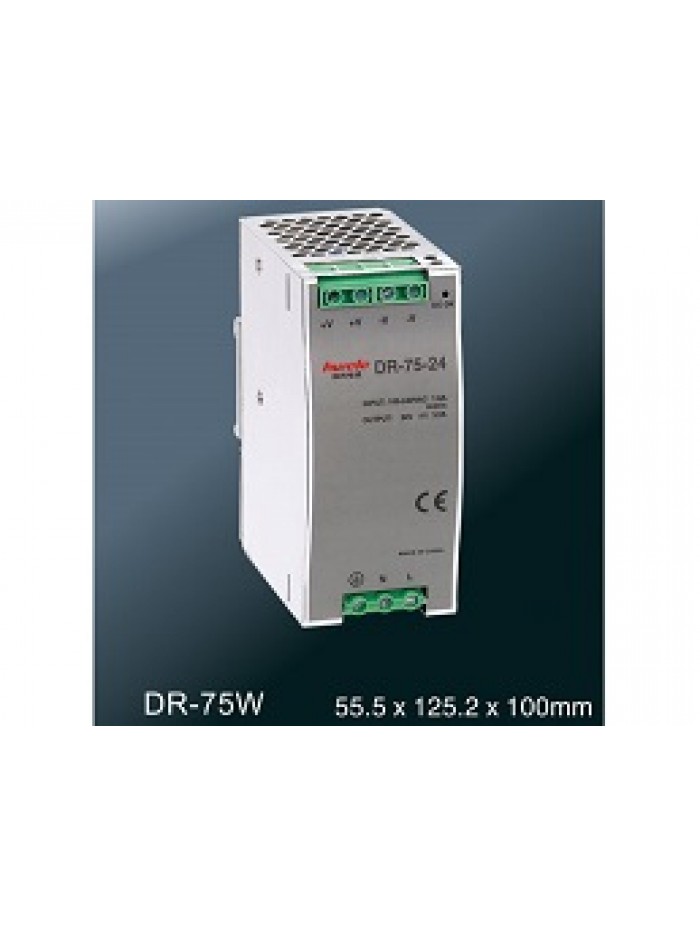

Model

DR-75-12

DR-75-24

DR-75-48

output

DC voltage

12V

24V

48V

Voltage tolerance

±2%

±1%

±1%

Rated current

6.3A

3.2A

1.6A

Current range

0~6.3A

0~3.2A

0~1.6A

Rated power

76W

76.8W

76.8W

Ripple&noise

100mvp-p

150mvp-p

200mvp-p

DCvoltage ADJ.range

-9%~+10%

±10%

±10%

input

Voltage range

90~264VAC，127~373VDC

frequency

47~63HZ

AC current

1.6A/110VAC，0.96A/220VAC

efficiency

79%

81%

84%

Inrush current

Cold start current  20A/115VAC，40A/230VAC

Leakage current

< 1mA/240VAC

protection

Over load

Rated output power110%~150%  start over load protection

protection type ：rated current limit ，auto-recovery after fault condition is removed

over voltage

15.6~17.8V

30.6~33.2V

54.8~56.6V

protection type：cutoff output，recovery after restart power

environment

Working temp,humidity

-20℃~+60℃，20%~90%RH

Storagetemp,humidity

-40℃~+85℃，10%~95%RH non-condensing

Withstand vibration

10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes

safety

Withstand voltage

I/P-O/P：3KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC

Fitstandard

Safety standard

Fit UL1012

EMC standard

符合EN55022，CLASSA

others

Dimension

55.5*125.2*100mm (L*W*H)

Weight/packing

0.6kg/20pcs/13kg/0.046m³/1.64CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
