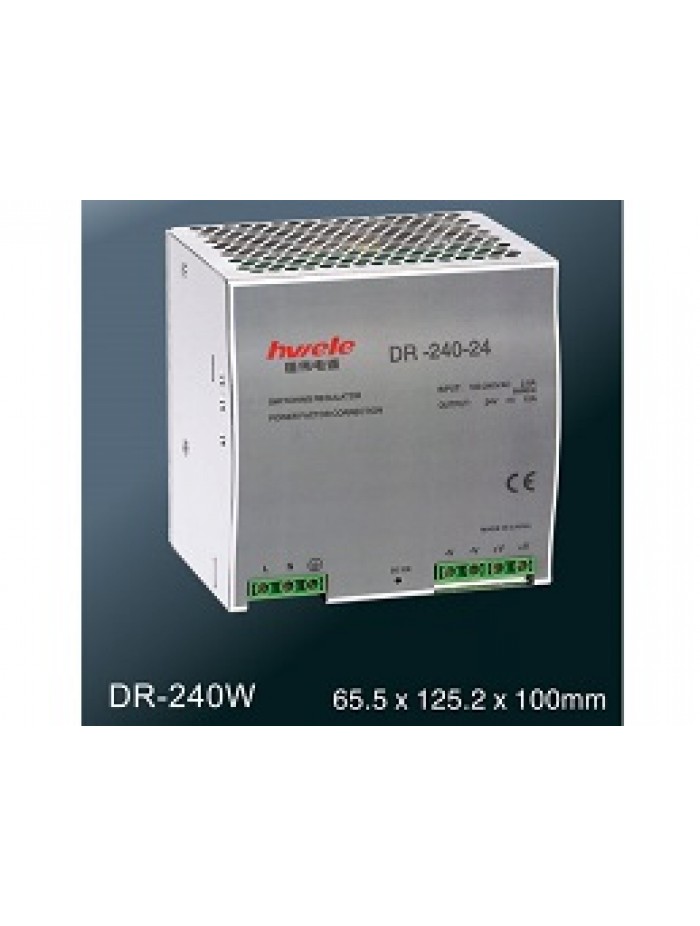

Power Supply DR-240W-24

  • 96.00€ (Ex Tax)
  • Availability: 1 (Available)
  • Brand: MPL
  • Product Code: DR-240W-24
  • Weight: 1.2 kg
  • Reward Points: 82

DR-124W series   Din-rail power supply

Features:·

  • universal AC input
  • Small volume,low weight,high efficiency
  • Protections:short circuit/over load/over voltage
  • cooling by free air convection
  • can be installed on DIN rail: TS-35/7.5 or TS-35/15
  • LED indicator for power on
  • 100% full load burn-in test


Model

DR-240-24

DR-240-36

DR-240-48







output

DC voltage

24V

36V

48V

Voltage tolerance

±1%

±1%

±1%

Rated current

10A

6.6A

5A

Current range

0~10A

0~6.6A

0~5A

Rated power

240W

237.6W

240W

Ripple&noise

120mvp-p

150mvp-p

180mvp-p

DCvoltage ADJ.range

±10%

±10%

±10%





input

Voltage range

90~132VAC/180~264VAC,255~373VDC

frequency

47~63HZ

AC current

2.8A/110VAC,1.4A/220VAC

efficiency

85%

85%

86%

Inrush current

Cold start current  27A/110VAC,45A/220VAC

Leakage current

< 3.5mA/240VAC



protection

Over load

Rated output power105%~135%  start over load protection

protection type :rated current limit ,auto-recovery after fault condition is removed

over voltage

30.6~33.2V

42.6~44.2V

54.8~56.6V

protection type:cutoff output,recovery after restart power

over temperature

TSW1detect on heatsink of power transistor≥105℃±5℃, start over temperature protection

Protection mode:cutoff output,auto-recovery after temperature become normal

environment

Working temp,humidity

-20℃~+60℃,20%~90%RH

Storagetemp,humidity

-40℃~+85℃,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC

Fitstandard

Safety standard

Fit UL1012

EMC standard

符合EN55022,CLASSA

others

Dimension

125.5*125.2*100mm (L*W*H)

Weight/packing

1.2kg/12pcs/15.5kg/0.046m³/1.64CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

Data sheet
Primary Voltage 90~132VAC/180~264VAC
Secondary Voltage 24 VDC
Rated Power 240 W
Power Supply Case DIN rail
