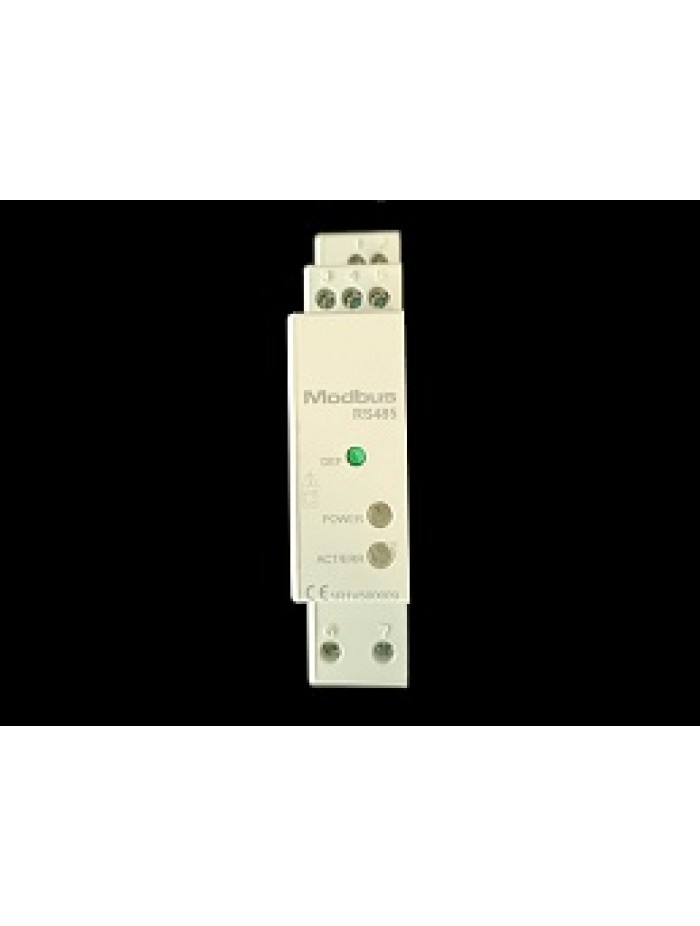

UEC-RS

Compact size interface (1-2 DIN modules), easy to use, no connection thanks to the optical port that can be combined with the energy meter. Possibility to alternate the use of the communication module according to the required application.

Compact communication modules, suitable for the management of energy meters in industrial and civil environments. All modules can be combined with the following meters:

• 6A three-phase
• 80A three-phase
• 80A single phase


The module allows to collect and transmit the measurement values ​​of the connected meter to a remote station. These data are transmitted on the RS485 line, using the MODBUS RTU or ASCII protocol. MODBUS is the most widespread communication protocol designed to allow communication between instruments in the industrial environment. The RS485 module has a SET DEFAULT key for restoring all communication parameters to the factory values. This function is very useful, eg. in case the logical MODBUS address is forgotten. The two LEDs on the RS485 module provide information on the power and communication status.
