Meter SDM120CT-MOD-MID Modbus MID
- 48.00€ (Ex Tax)
- Availability: 20 (Available)
- Brand: EASTRON
- Product Code: SDM120CT-MODBUS-MID
- Weight: 0.2 kg
- Reward Points: 40
SDM120M

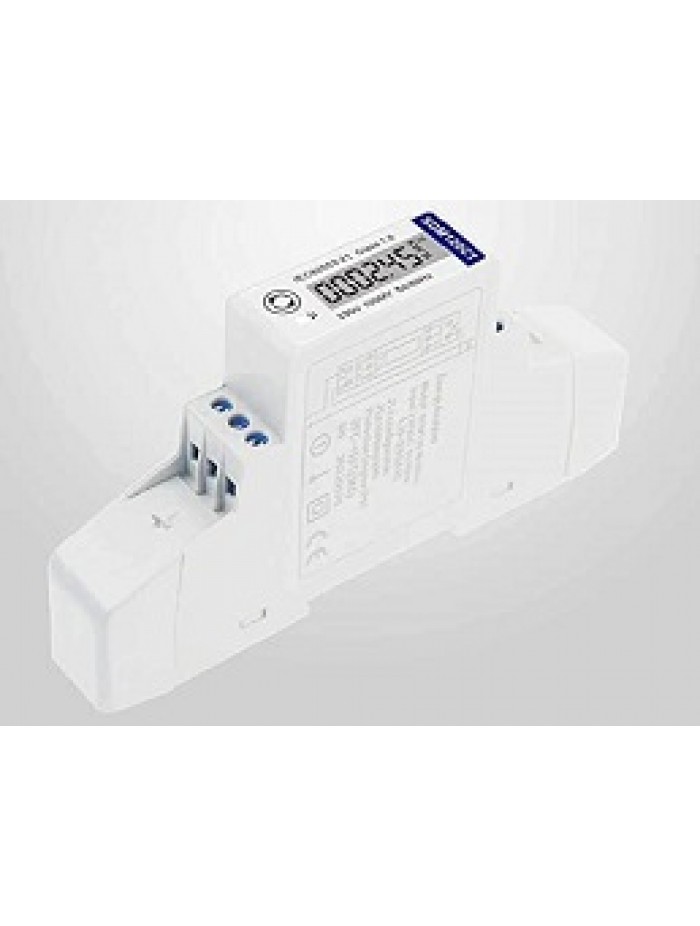

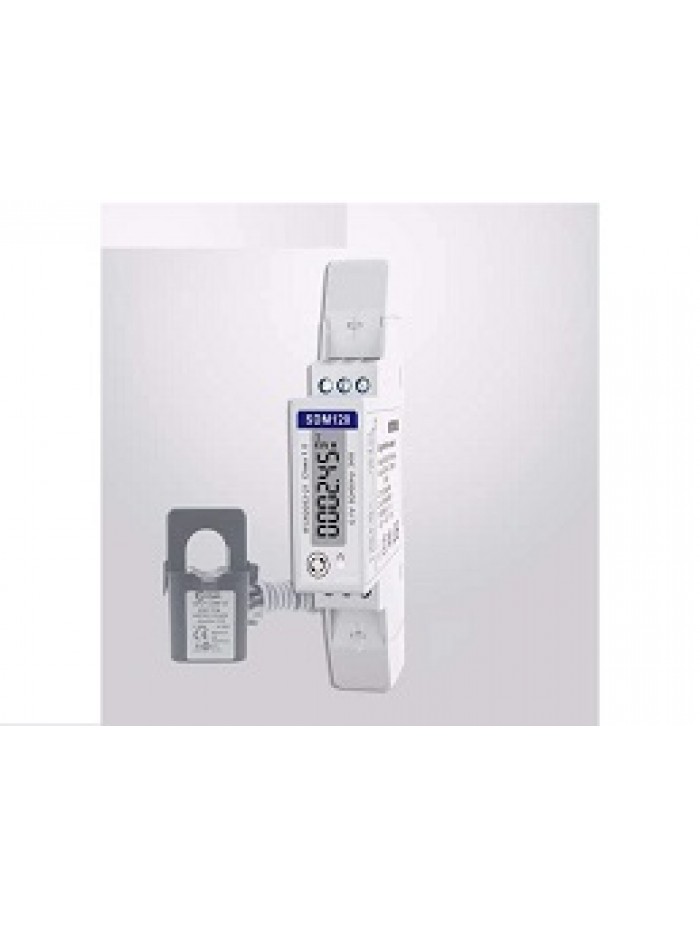

The SDM120CT series offers a low cost solution for measuring single phase circuits with current clamp.
The SDM120CT measures a wide range of parameters including voltage, current and power factor.
There are also 3 models available depending on the requested output, which goes from a pulsed only output (SDM120CT-Pulse), Modbus RTU (SDM120CT-Modbus) and MBus (SDM120CT-MBus). All SDM120 meters are housed in a 1-module DIN rail mounted housing. They are also complete with sealable terminal covers to prevent any tampering with the connections.
Measures
- Voltage (V)
- Current (A)
- Active power (kW)
- Power factor (PF)
- Frequency (Hz)
- Import active energy (kWh)
- Export active power (kWh)
- Total active energy (kWh)
Features
- current clamp
- MID certificate (B and D)
- Bidirectional measurement for kW and kWh
- Configurable pulse output (Inport, Export, Net kWh)
- RS485 Modbus or M-bus variants available
- Multi-parameter measurements
- Simple setup and operation
Certifications
- MID: EN50470-1 and EN50470-3 Class B
- EMC: EN61326-1 and EN61326-2-3
- LVD: EN61010-1 and EN61010-2-3
| Data sheet | |
|---|---|
| Laying | DIN Rail with CT |
- SDM120CT-datasheet (260.97KB) (Only for logged users)
- SDM120CT-manual (1.1MB) (Only for logged users)
