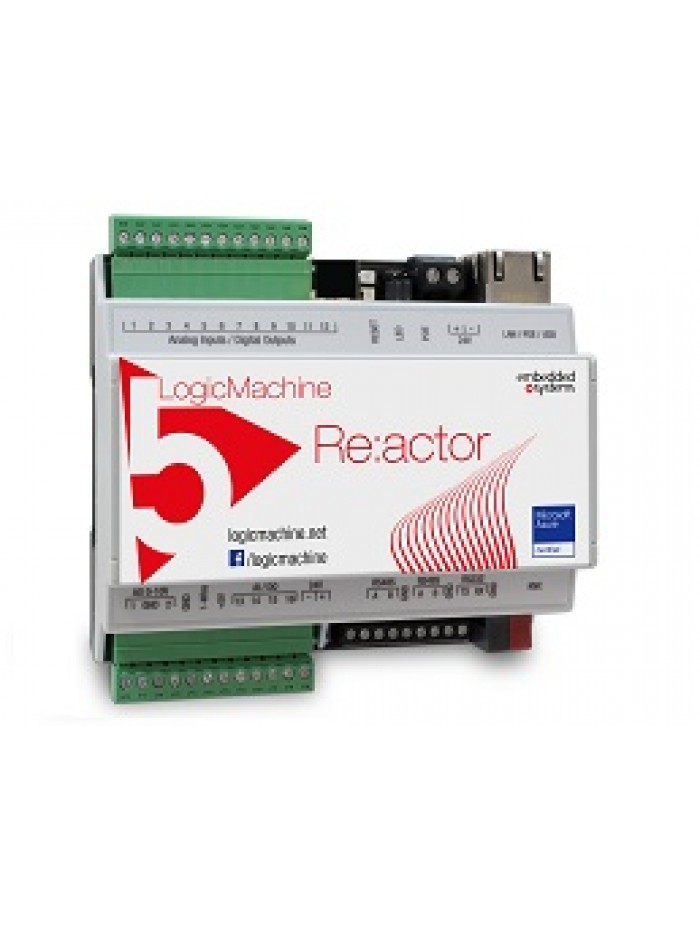

LM5p2-RIO2E Logic Machine with I/O KNX and gateway Enocean

LogicMachine5 Reactor IO v2 is an all-in-one multi-standard controller that combines gateway functionality, cloud service integration, complex network logic engine, easy-to-build visualization platform, IP router, I/O, and more into a single device. Additionally, LM5 supports iOS Siri and Google voice control via native apps available on the App Store and Google Play.

Features

• 18 I/O ports
• LM5 Reactor IO v2 features built-in KNX, EnOcean bidirectional interface (optional), two serial interfaces
• Power-over-Ethernet power supply
• Application development and application store
• Cloud-ready device with Microsoft Azure, Amazon Web Services, and other supported services
• Gateway and uniform control mode of KNX TP, ModBus RTU/TCP, BACnet IP, EnOcean (optional), DMX, M-Bus, GSM and more
• Unlimited scenario and logic engine
• Unlimited viewing platform for PC and touch devices
• Size: 6 DIN units
• Object recording with trend support and data export to external servers
• iOS Siri and Google Voice control supported via native apps
• Optional 3x more powerful CPU than all previous LogicMachine versions

I/O specification

• 1 x RS485
• 1 x RS485/RS-232 (switchable in software)
• 1 x USB2.0 (starting from 2017)
• 1 x 10/100 Ethernet with passive PoE support
• 1 x KNX TP
• 16 x Programmable Analog inputs or Digital outputs
• 2 x 0-10V analog outputs
• 1 x 1-Wire
• 1 x EnOcean 868MHz radio transceiver with external antenna
