LM5P2-KCD

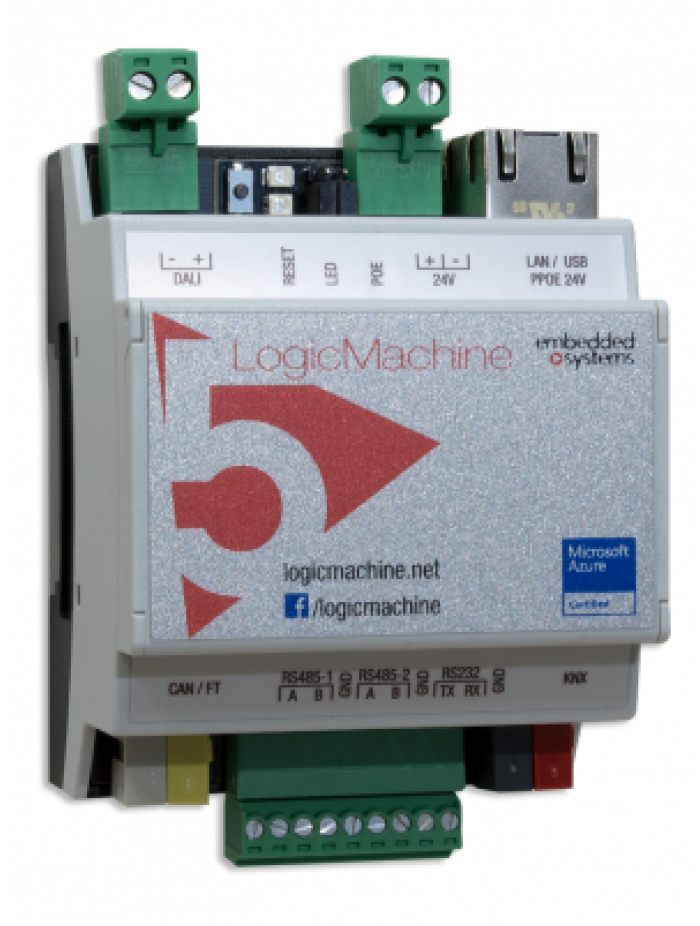

LogicMachine (LM) is your easiest way to program complex logic in KNX, CAN, Modbus, DALI, BACnet networks. LM will enable you to efficiently customize building automation processes, easily delivering unlimited flexibility benefit to end users in a costeffective way. LM5 Power is an embedded platform with integrated Ethernet, USB, KNX TP1, CAN FT, DALI, Serial interfaces. LM allows to use it as cross-standard gateway, logic engine, visualization platform, IP Router. Scripting templates provides user-friendly, flexible configuration interface and integration with cloud/web services, 3rd party devices. Via applying custom scripts LM can simultaneously act as thermostat, security panel, lighting controller, etc. LogicMachine application store and external app development possibility allows to extend device functionality and adjust to a specific market segment LM5 Power has passive Power-over-Ethernet support.

In comparison with DALI built in other LM5 devices (like DW1, DR, RD), you can use it as DALI Multi-master. The commissioning software for LM supports both DALI1 and DALI2.

Application

• Logical functions
• WEB SCADA visualization for PC and touch-devices
• Cross-standard gateway
• Integration with third party devices over USB, RS485 serial port, Ethernet – AV, IR, HVAC
• Data logger with trends
• KNX IP Router
• Presence monitoring
• Lighting regulation
• Universal controller (lighting, shutter etc.)
• Health/activity monitoring
• Internet-of-Things
• Cloud server/client
