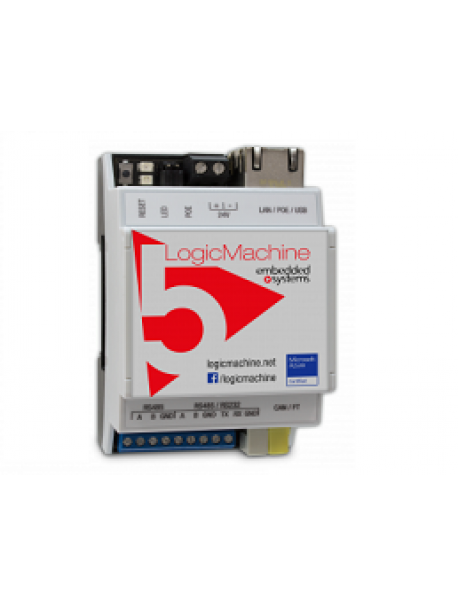

LM5-CLp2 Logic Machine with CANX

  • 790.00€ (Ex Tax)
  • Availability: 2 (Available)
  • Brand: LOGIC MACHINE
  • Product Code: LM5-CLp2
  • Weight: 0.06 kg

LogicMachine 5 con CANX

LogicMachine5 Lite acts as cross-standard gateway, cloud service integrator, complex network logic engine, easy-to create visualization platform, IP Router and much more. Further, LM5 supports iOS Siri and Google Voice control via native apps available in App Store and Google Play. The device has its own app store including apps for CANx device commissioning and monitoring.

Hightlights:

  • Power-over-Ethernet powering
  • Automatic Ethernet connection checking and informing in case of troubles
  • Application development and application store
  • Cloud ready device with Microsoft Azure, Amazon Web Services and other services supported
  • Gateway and uniform way of control of CAN FT, KNX IP, ModBus RTU/TCP, BACnet IP, DMX, M-Bus, GSM and more
  • Unlimited scenario and logic engine
  • Unlimited visualization platform for PC and for touch devices
  • Size: 3 DIN units
  • Object logging with trends support and data exporting to external servers
  • iOS Siri and Google Voice control supported via native apps
  • CANx technology description can be found here
  • LogicMachine5 comparison table 2.2019

I/O specification:

  • 1 x RS485
  • 1 x RS485/RS-232 (switchable in software)
  • 1 x USB2.0 (starting from 9.2016)
  • 1 x 10/100 Ethernet with passive PoE support
  • 1 x CAN FT
  • 1 x USB2.0


Data sheet
DIN Modules 3
Power Supply 24 VDC
Secure YES
KNX Function IP
