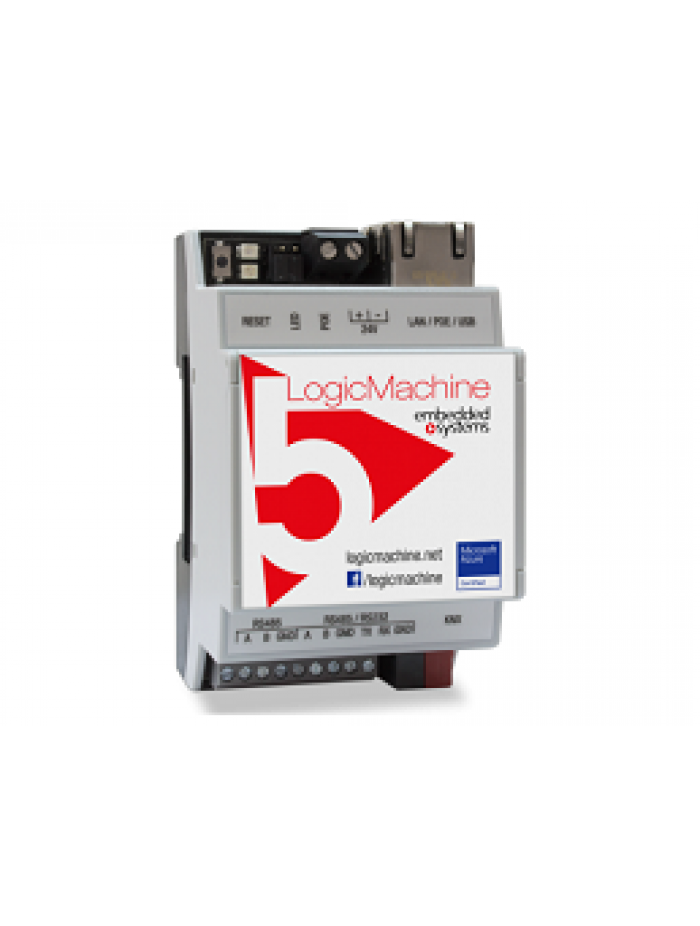

LogicMachine 5 Lite

LogicMachine5 Lite acts as cross-standard gateway, cloud service integrator, complex network logic engine, easy-to create visualization platform, IP Router and much more. Further, LM5 supports iOS Siri and Google Voice control via native apps available in App Store and Google Play.
LogicMachine 5 Lite is the basic module of all LogicMachine5 Reactor devices, so the difference if only in physical ports.

• Power-over-Ethernet powering
• Automatic Ethernet connection checking and informing in case of troubles
• Application development and application store
• Cloud ready device with Microsoft Azure, Amazon Web Services and other services supported
• Gateway and uniform way of control of KNX, ModBus RTU/TCP, BACnet IP, DMX, M-Bus, GSM and more
• Unlimited scenario and logic engine
• Unlimited visualization platform for PC and for touch devices
• Size: 3 DIN units
• Remote KNX bus control and KNX device reprogramming
• Object logging with trends support and data exporting to external servers
• iOS Siri and Google Voice control supported via native apps
• 3x more powerful CPU than all previous LogicMachine versions.


• 1 x RS485
• 1 x RS485/RS-232
• 1 x USB2.0
• 1 x 10/100 Ethernet con PoE passive
• 1 x KNX TP1 (TP-UART2 physical layer IC)
