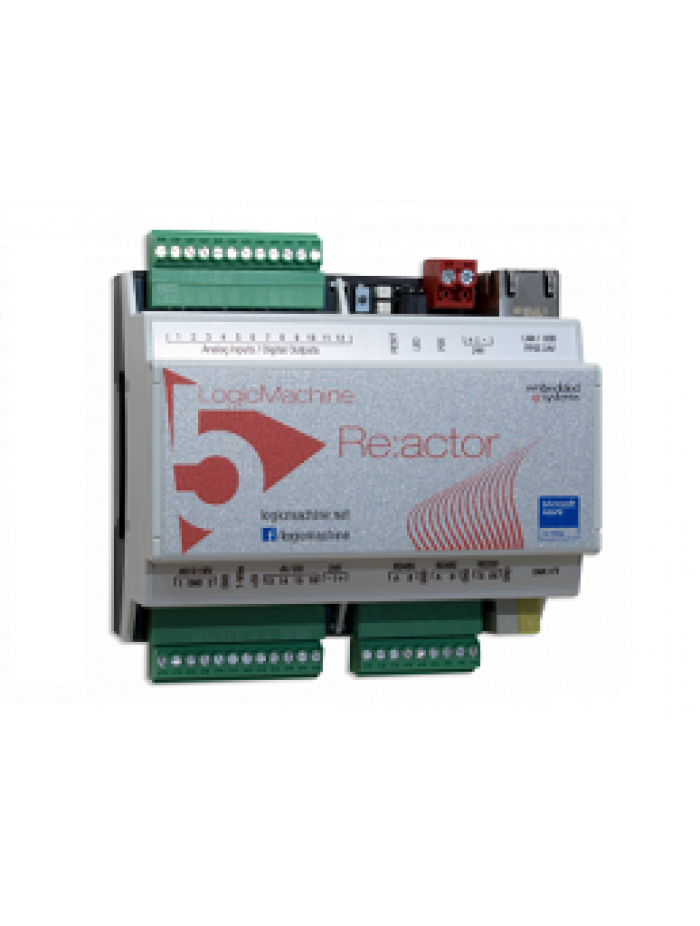

LM5p2-RIO2 Logic Machine with I/O CANx

LogicMachine5 Reactor IO v2 is an all-in-one multi-standard controller that combines gateway functionality, cloud service integration, complex network logic engine, easy-to-build visualization platform, IP router, I/O, and more into a single device. Additionally, LM5 supports iOS Siri and Google voice control via native apps available on the App Store and Google Play.

LogicMachine5 Reactor IO v2 consists of LogicMachine5 Lite and the IO extension module. v2 differs from the initial v1 with the possibility of using the inputs for pulse measurement.

Features

• 18 I/O ports
• LM5 Reactor IO v2 features built-in FT CAN, EnOcean bidirectional interface (optional), two serial interfaces
• Power-over-Ethernet power supply
• Application development and application store
• Cloud-ready device with Microsoft Azure, Amazon Web Services, and other supported services
• Gateway and uniform control mode of Can FT, KNX IP, ModBus RTU/TCP, BACnet IP, EnOcean (optional), DMX, M-Bus, GSM and more
• Unlimited scenario and logic engine
• Unlimited viewing platform for PC and touch devices
• Size: 6 DIN units
• Object recording with trend support and data export to external servers
• iOS Siri and Google Voice control supported via native apps
• Optional 3x more powerful CPU than all previous LogicMachine versions

I/O specification

• 1 x RS485
• 1 x RS485/RS-232 (switchable in software)
• 1 x USB2.0 (starting from 2017)
• 1 x 10/100 Ethernet with passive PoE support
• 1 x CAN FT
• 16 x Programmable Analog inputs or Digital outputs
• 2 x 0-10V analog outputs
• 1 x 1-Wire
• EnOcean 868MHz radio transceiver with external antenna (optional)
