CHPB-0y/02.1.2x

(x=0: White; x=1: Black; x=2: Silver; x=3: Gray; x=4: Golden)

(y=4: 2 gang; y=6: 3 gang; y=8: 4 gang)

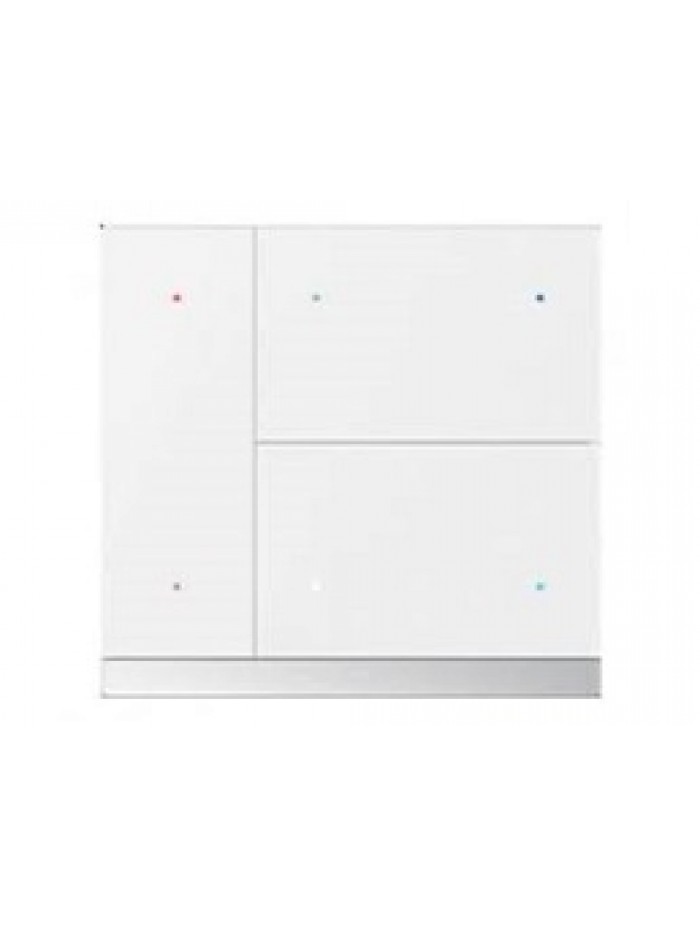

KNX Push Button Sensor, 4/6/8 buttons integrates the basic control functions of Switch, Dimming, RGB/RGBW lighting, Colour temperature control, Blind, Scene, Value sender, Shift register, Multiple operation, Delay mode, RTC operation mode, String sending, and has a built-in temperature sensor to detect the local ambient temperature and supports RGB indication function. In addition, the series products support Logic function and Scene Group function, and 2 external input interfaces (as Binary input detection or NTC detection), provide more possibilities for special and complex applications. KNX Push Button Sensor, 4/6/8 buttons powered from KNX bus. It is available to assign the physical address and configure the parameters by engineering design tools ETS with .knxprod ( support edition ETS5.7 or higher ).

The functions are summarized as followed:

•  Switch and Dimming
•  Blind control
•  Value sender
•  Scene control
•  Shift register
•  RGB , RGBW and colour temperature control
•  Multiple operation
•  Delay mode
•  Send RTC operation mode
•  Send Strings
•  Built-in temperature sensor
•  Logic output, Scene group conversion
•  RGB LED indication functions
