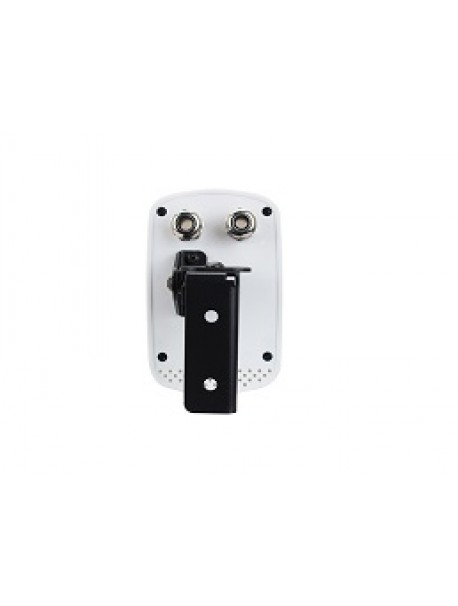

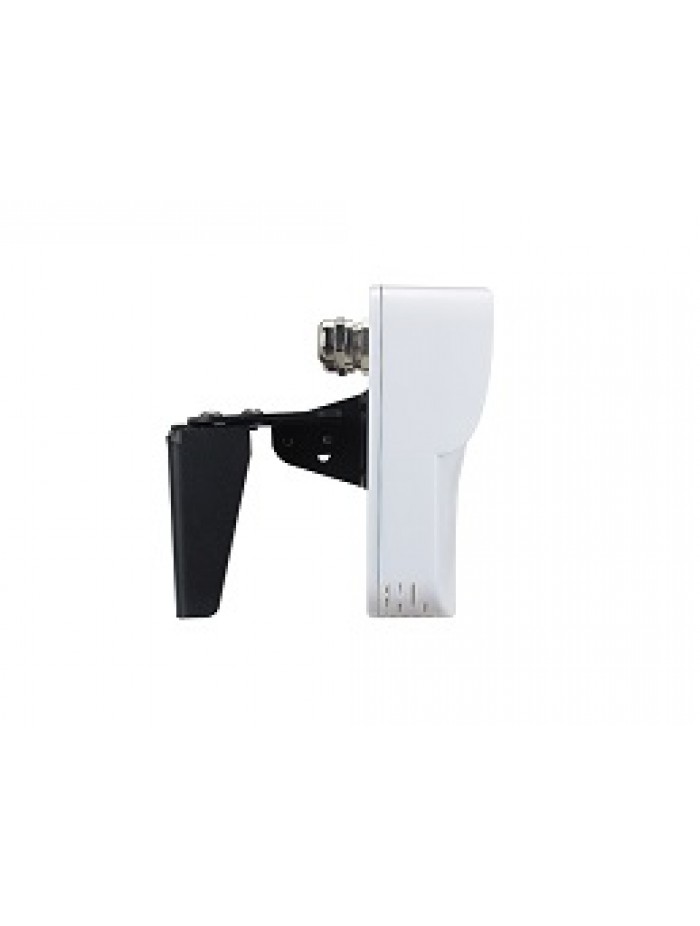

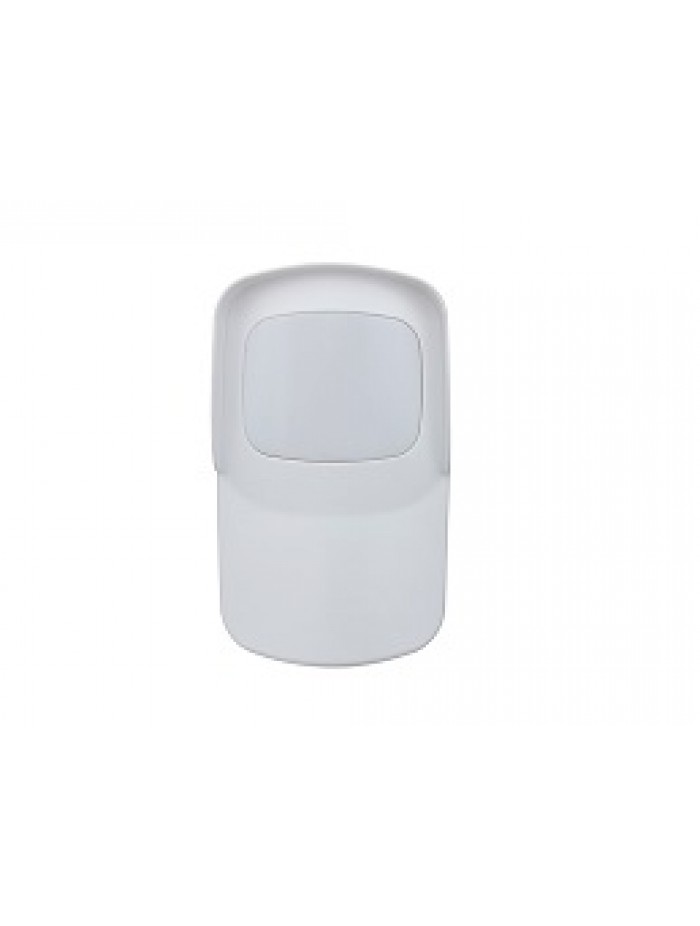

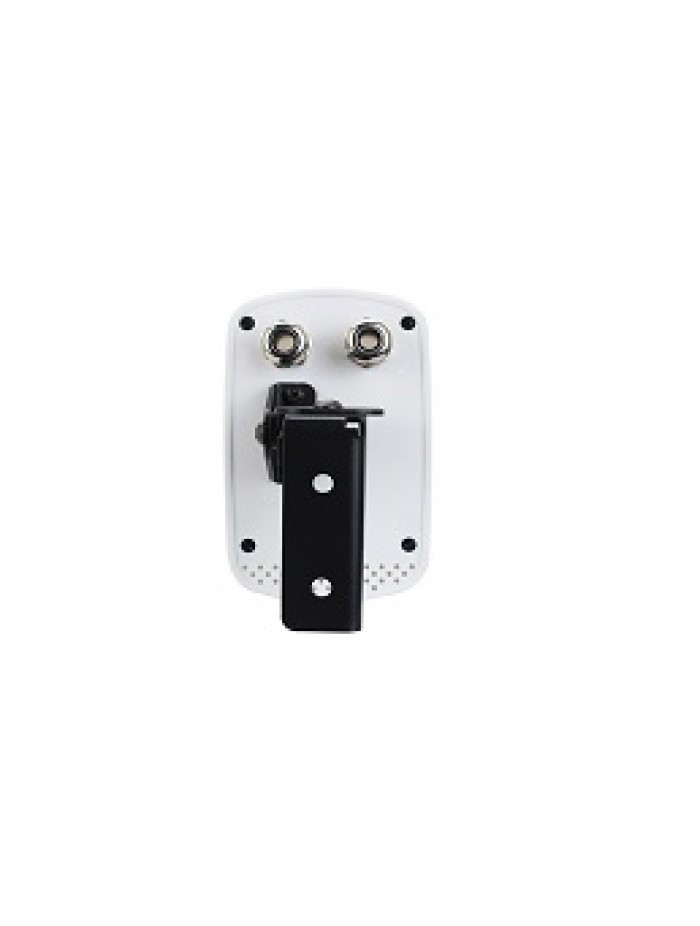

HDL-M/WS05.1-A

KNX Wall Mount Outdoor Microwave Sensor contains four independent logic blocks and one combined logic block. Supported input logical conditions include: Microwave sensing status, brightness value, temperature value, dry contact status and external telegram. The sensor can control lighting, curtain and threshold value.

Functions:

• With 2CH constant brightness control function, the sensor supports 4 preset constant values and forced operation dimming.
• 5 logic blocks with 10 target output for each and supports dry contacts and external telegram locking/unlocking, or delay unlocking. Telegram locking/unlocking can be set to send on/off telegram.
• Control types: Switch control, Absolute dimming control, Curtain control, Alarm control, Percentage control , Sequence control, Scene control, String(14 bytes) control, Logic combination control.
• 5 logical condition sources: Microwave sensing status, brightness value, temperature value, dry contact status and external telegram.
• 2 logical relations: AND, OR
• 2 working modes: Single mode and Master & Slave mode.
• 2 dry contact input interfaces can wok as dry contact or LED indicators. The control types of dry contact target output can be set as switch, dimming and scene.
• The logic validity can be set through external telegram input.

Important Notes:

• Installation - installed outdoor, be away from rain, or install shelter panels if needed.
• Programming - This device is compliant with the KNX standard and can only be programmed by ETS software.
• KNX Bus voltage - 21-30V DC.
