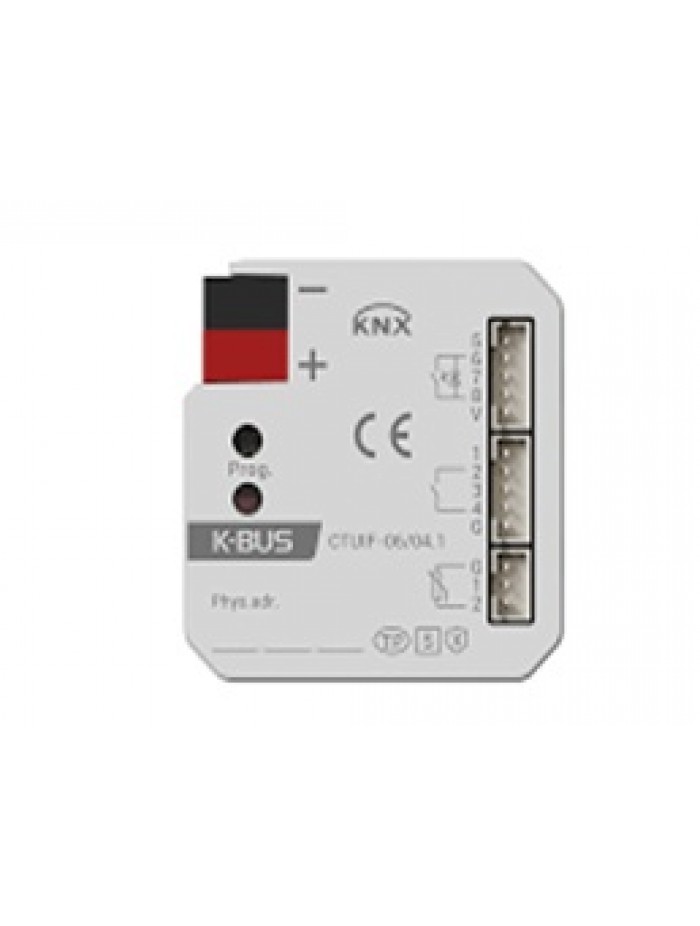

CTUIF-06/04.1

Safe universal KNX interface with NTC input, 4 inputs and 4 LED outputs.

Compatible with all types of switches:

· Dry contact integration.

· Possibility of configuring up to 8 inputs

· Available functions: switching, dimming, motor control, scene control, value sending, shift register, multiple operation, RGB/RGBW control, delay mode, 8 event groups, 8 logic functions etc.

Support temperature sensing with NTC sensor:

· 2 10K NTC temperature sensors to collect temperature data from multiple locations in the room, allowing for intelligent temperature regulation. With high and low temperature warning functions for dynamic constant temperature control.

· Possibility of connection to 2 or 4 pipe thermoregulation systems.

· Temperature control.

Other features:

· Logic function: Logic function includes AND, OR, XOR, gate forwarding, threshold comparator, format conversion, gate function, delay function and stair lighting function.

· 8 scene groups function: each group with 8 configurable outputs.

· Common anode LED output indicator, with voltage 5V/12V.

· Supports KNX Secure
