eTR101

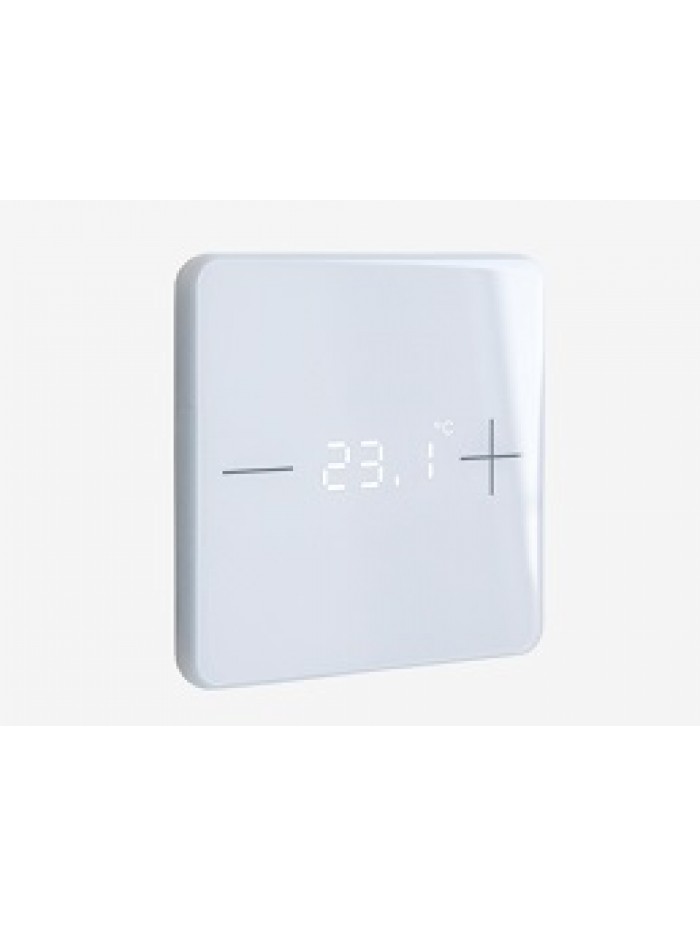

The KNX eTR 101 Room Temperature Controller measures the room temperature and displays the current value using white illuminated digits. The device can receive the external measured value via the bus and process it with its own data to obtain the total temperature (mixed value).

The KNX eTR 101 has a PI controller for heating and cooling (single or two-stage). The room temperature is changed using the + and - touch buttons.

FEATURE:

• Temperature measurement.
• Mixed value from own measured value and external values ​​(adjustable percentage ratio), display of minimum and maximum values
• Display of the actual temperature or the setpoint value and/or the basic deviation of the setpoint
• 2 touch buttons (+/-) for changing the room temperature
• PI controller for heating (1-phase or 2-phase) and cooling (1-phase or 2-phase), temperature-dependent.
• Control according to separate preset values ​​or the predefined basic temperature
• Setting of the bus functions via the KNX ETS software (from version 5)
