A-IS03

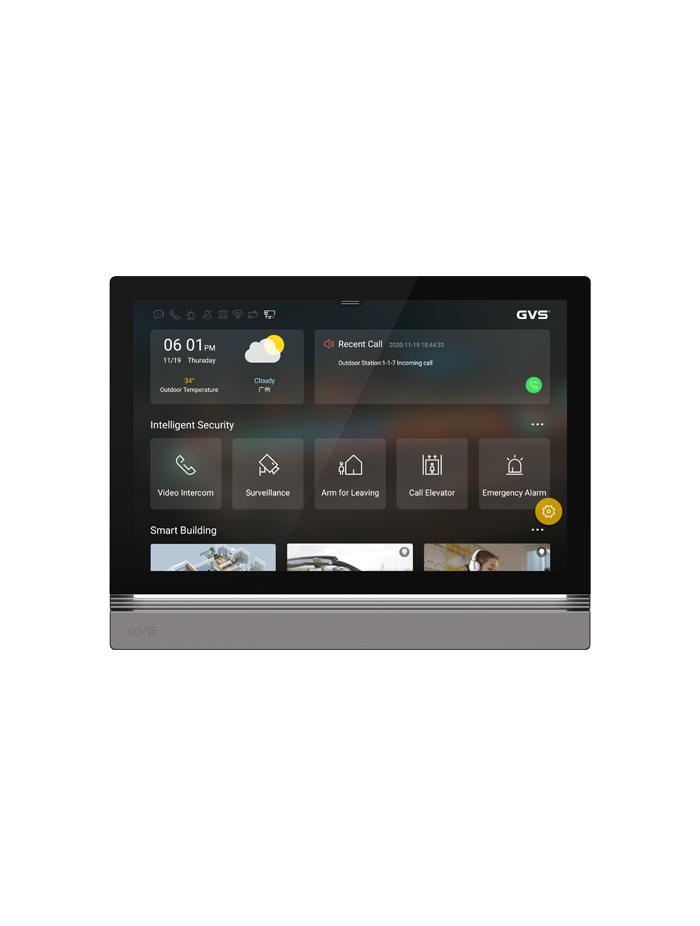

10.1" IPS touch panel,resolution 1280*800, aluminum faceplate, ambience LED strip, built-in temperature sensor. Full KNX functions with list-view or map-view, full intercom functions, 48V PoE, connect IP camera. 15 control pages of switch,dimming, shutter, scene control, value sending, RGB, HVAC, AC,ventilation,floor heating, audio control, energy metering, air quality display. Max.16 timing, 8 group event, 8 logic functions. Installation: wall mounted, fits in 86*86mm and German double-60mm wall boxes.

This product is a device based on TCP/IP protocol and KNX protocol, it is a main service for building intercom system which support video intercom, defense zone setting and standby picture tweeting (under standby mode). In addition, it can also control KNX device connected to the system, for example, ON/OFF lights, enable/disable scene, dimming, shutter/blinds control, HVAC control et., it supports not only KNX functions in listed page but also in map view.

Main Features of Z10:

• 10.1” IPS Touch Panel with aluminum faceplate  S
• Support standard PoE 48V power or DC24V auxiliary power
• Support connection to doorbell or mini outdoor station
• Support lift calling function
• Support call divert setting
• Support real-time surveillance to door stations and IP cameras connected
• Support receiving message from guard unit
• Support video intercom among visitor, resident and management center
• Support intercom in the same network
• Standard 8 defense zones
• Support map view programming in smart home function
• Ambience LED belt for elegance and indication of functions
• Switching, dimming, shutter/blinds control, value sending function
• Support air quality value display
• Support HVAC control
• Support both IR split AC and AC with protocols (RS485 etc.)
• Support background music control
• Support RGB control
• Max. 16 timing functions
• Max. 8 event group functions and 8 logic functions
