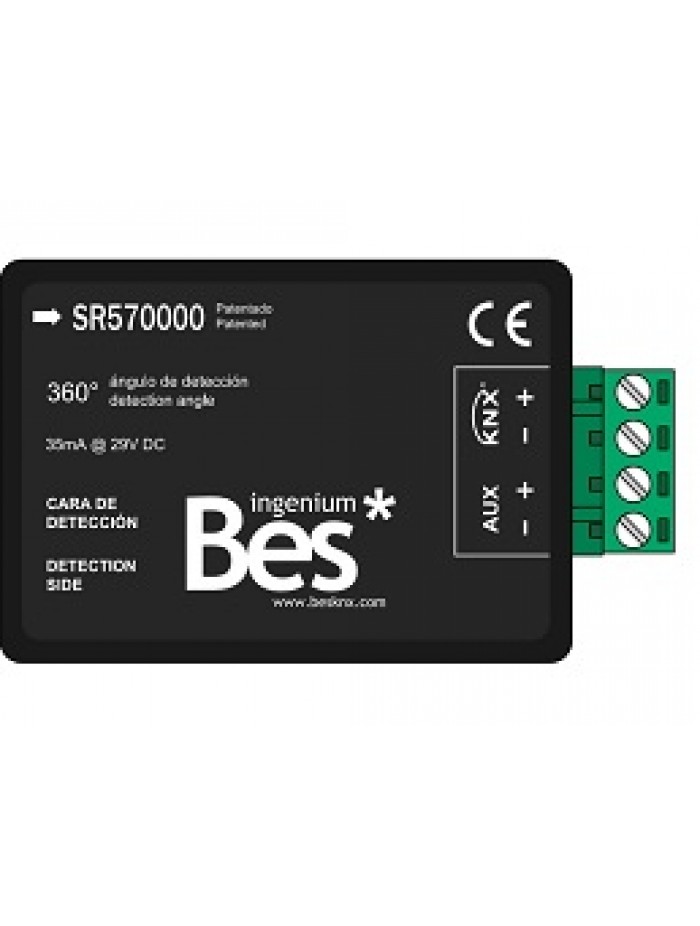

KNX radiofrequency movement detector SR570000
KNX radiofrequency movement detector – Hidden install
Hidden movement detector for installation above false or technical ceilings. It is also possible to install it in brick-walls, wood-walls, plasterboards etc. It allows a wide and easy parameterization, being suitable for lighting functions, as well as people detection and intruder control.
Detection area at 2.5m from the floor: Guaranteed: 6x3m / Maximum: 12x6m.
- Supply: 29V DC from auxiliary power supply or from KNX BUS
- Consumption (depends on source):
- Auxiliary Power Supply 12-30V DC (Recommended)
- 35mA from auxiliary power supply
- 1mA from KNX BUS
- KNX BUS (Optional)
- 35mA from KNX BUS
- Auxiliary Power Supply 12-30V DC (Recommended)
- Type of protection: IP20. Extra low security voltage SELV, 24V direct current
- Size / weight: 25 x 45 x 65mm / 115g
- Mount: over false ceilings or hidden in walls or bricks
| Data sheet | |
|---|---|
| KNX Function | Movement Detector |
| Laying | Hidden |
- Data-sheet-SR570000 (1.25MB) (Only for logged users)
- File_vd_SR570000 (38.53KB) (Only for logged users)
