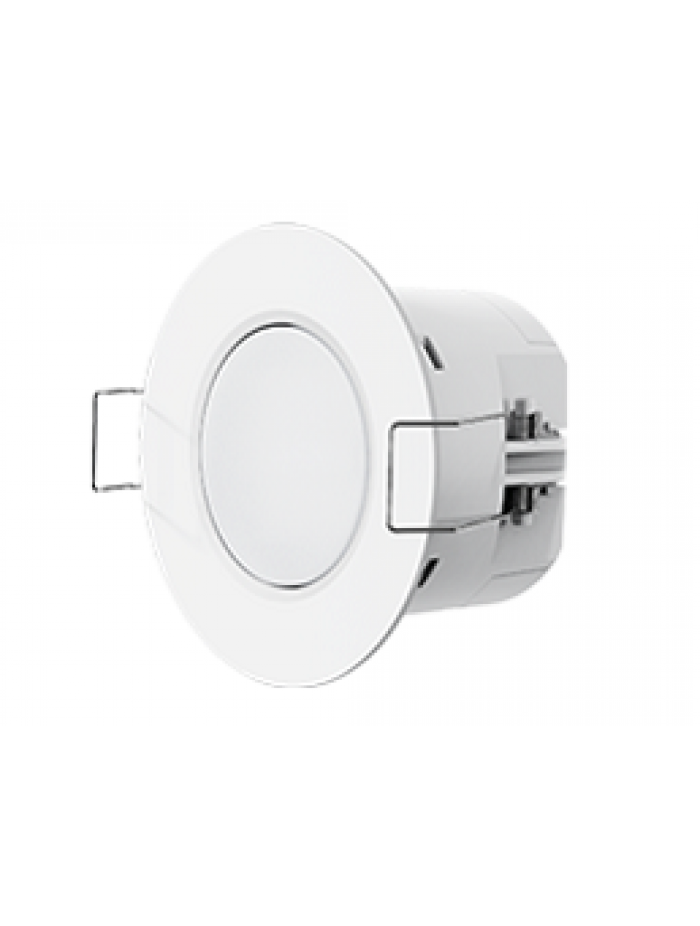

CSBPM-04/00.1.00

KNX presence sensor series includes KNX Presence Sensor,Microwave (CSBPM-04/00.1.00) that uses 24GHz microwave detection technology, and KNX Motion Sensor,PIR (CSBP-04/00.1.00) which uses pyroelectric infrared detection technology. Both built in presence sensor and brightness sensor which are used for illumination or occasions where presence/motion is required (office, hotel, homeand etc.).

Brightness sensor measures the current brightness, support to light control and constant lighting function, and the brightness and presence detector can be flexibly combined control. Besides, this series of products also supports to temperature sensor, humidity sensor, RTC function, logic function and scene group function, can meet more complex and diverse control and applications.

KNX Presence Sensor,Microwave is connected to KNX bus, and need a 12-30V DC auxiliary supply voltage, but KNX Motion Sensor,PIR is only powered from the bus. It is available to assign the physical address and configure the parameters by engineering design tools ETS with .knxprod ( support edition ETS5.7 or higher ).

Functions are summarized as followed:

•  Different behavioral detection of normal movement, tiny movement and static presence, with 24GHz microwave detection technology (Apply to CSBPM-04/00.1.00)
•  Behavioral detection of obvious movement with pyroelectric infrared detection technology (Apply to CSBP-04/00.1.00)
•  Sensitivity is configurable and can be adjusted by day/night (Apply to CSBPM-04/00.1.00)
•  Work modes of master/slave
•  Up to 4 presence control channels, and the first channel with 3 levels control
•  Automatic mode and semi-automatic mode
•  Internal brightness sensor, and control the light via brightness threshold and also control logically with presence signal
•  Individual presence control telegram according to Day/Night
•  Built-in temperature and humidity sensors
•  Constant lighting control
•  RTC functions for heating/cooling system, as well as support additional heating/cooling
•  Logic functions and scene group functions
•  Support the KNX Data Secure
