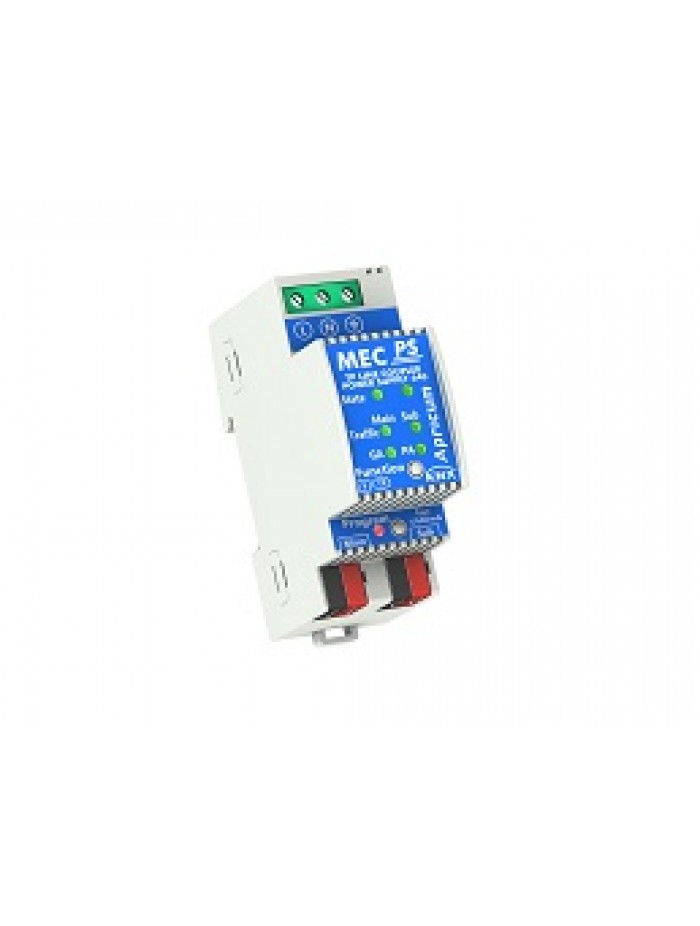

MECps640

The new compact MECps640 merges the functionalities of two system devices. Beside the line coupler function, it also powers the KNX TP subline.

• Overload and short circuit protection
• Bus line reset via local push button
• LEDs indicate actual device status
• Leakage loss < 5 W
• compact housing (2SU)
• supply of sub line / segment
• KNX-output (sub line): 28V -31V DC, 640mA
• various routing filter for group and individual telegrams
• support of long telegrams
• temporary disabling of routing filter via button
• blocking of configuration on upper lines from sub line
• various ACK and repetition settings
• integrated ACK generator
• APDU length 240 bytes
• Powered by 230 V AC
• DIN rail housing 2 SU
• KNX-certified
• CE-compliant
• ETS4 or higher
