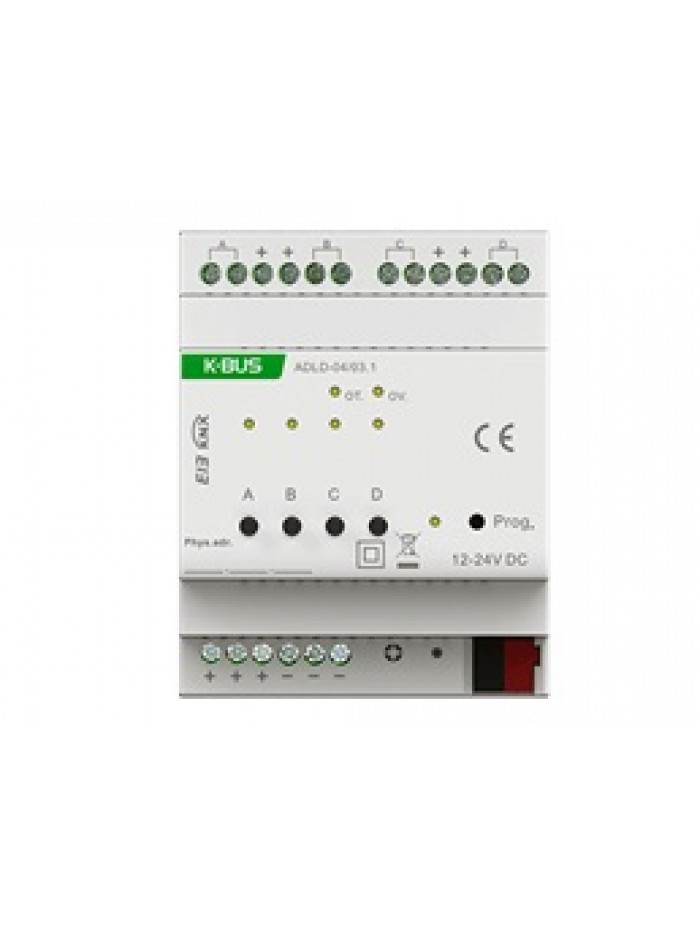

ADLD-04/03.1

The dimmer with LED constant voltage drive can drive LED directly, has four channels, each channel is independent. The output can connect with some big power dimming LED lights. These LEDs can be switched, dimmed, recall scene or other operations via the bus. The devices adopt screw terminals to achieve electrical connection; the connection to the KNX bus is established via a bus connecting terminal. The input need connect a 12V~24VDC operation voltage.

The following list provides a functional overview:

• Switching the LED light
• Relative dimming
• Absolute dimming
• Status report, error report
• Setting 15 scenes
• Staircase lighting function
• Bus recovery (or reset) function
• Preset value and modify preset value functions
• Switch/relative dimming via manual buttons
