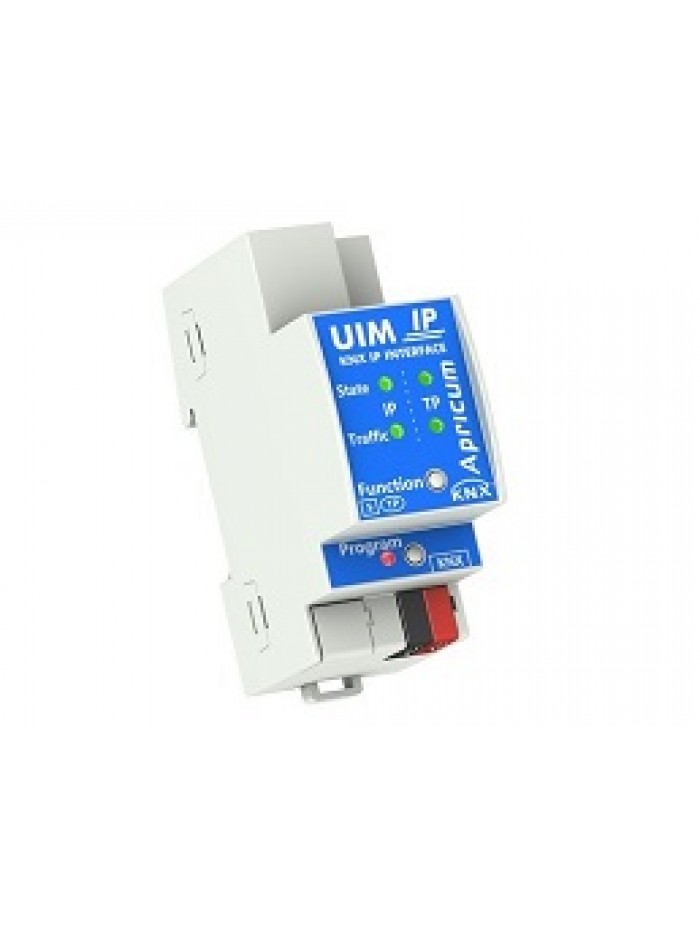

KNX IP Interface UIMip-Sec

UIMip-Sec with IP Remote Access for Firmware Updates and Function Button for Reset

The UIMip is a tunneling device and connects a personal computer to the KNX bus (TP). The device uses no KNX communication objects for itself.

With the ETS or with another KNX compatible commissioning tool the UIMip can be used as the programming interface.

For this purpose the device provides up to four additional physical addresses that can be used for tunneling connections and supports long telegrams (APDU length max. 240 bytes).

Four LEDs and two buttons are located on the front panel.

Diagnostic features are offered by displaying all operational states with combined LEDs.

The LEDs indicate details concerning the bus state, traffic on the KNX bus, error/faulty communication NACK, BUSY on the bus, etc.

Specifications & Special Features:

• First IP interface device in its class without the need for an additional external power supply
• RJ-45 port to connect to an Ethernet network
• Integrated KNX tunnelling interface
• Tunnelling protocols enable commissioning, monitoring and diagnostics via ETS
• Connecting a PC to the KNX bus line provides an easy way to access every bus device in the KNX bus system for setting ETS parameters, commissioning, addressing, visualization and diagnostics
• Lower installation cost, due to less cabling, less mounting effort, lower space consumption, and no need for an additional power supply unit
• IP address can be assigned manually or by DHCP
• Can be used with ETS3.0d and higher
• Support of long telegrams (max. 240 bytes APDU length)
• Support of the extended frame format
• Use of cEMI ("Common EMI") protocol
• Firmware can be updated via a Web interface
• Web frontend with diagnostic information
• Faulty communications are indicated by device LEDs
• Moderate energy demand covered by the KNX bus line
• Installation module for 35mm top-hat rails (DIN, TH35)
• KNX-Secure Compliant
