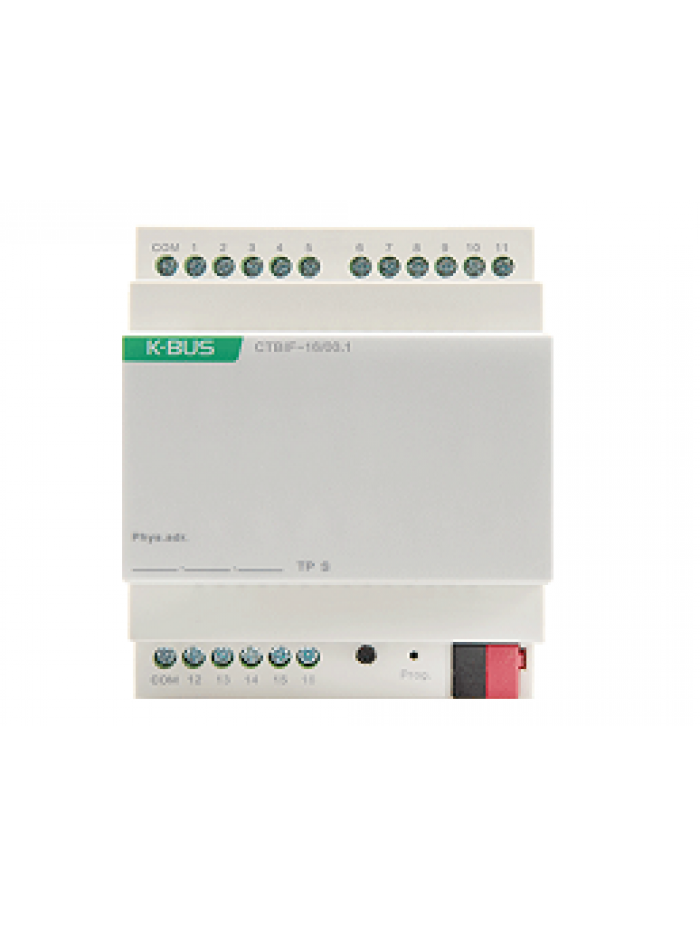

CTBIF-16/00.1

The Binary Input for floating contact ( hereinafter being referred as Binary Input) are mainly used in building control system. Via connection of KNX terminals (black/red), these devices will be connected to the KNX BUS system to realize different functions in KNX system, and their functions are both simple to operate and intuitive, users can program it according to the requirement to implement the function systematically.

The Binary Input has 4-Fold, 8-Fold and 16-Fold inputs, and these devices are designed for modular installation devices, which are easy to install in the distribution boards on 35mm mounting rails according to EN60715.

It can be used in ON/OFF switch, dimming, shutter control, scenario, RGB control, multiple control, delay sending etc. When selecting products, users can choose them according to own require.

The Binary Input connect to KNX bus directly, no extra power is needed.

In programming, both physical addressing and parameter setting can be realized by using ETS with .knxprod files (ETS4 or above). The Binary Input have many functions that can be used in a wide variety of application areas. The following list provides an overview: 

• Switching and dimming 
• Shutter control and Value sending 
• Scenario function 
• Shift register function 
• RGB and RGBW dimming 
• Multiple control 
• Delay sending(e.g. switching value, dimming value) 
• 8 logic function 
• 8 event group function (with 8 parameterizable output in each group) Each input of a device can adopt any of the functions described above. In order to ensure the normal work of device in the actual use, the selection of the hardware type in the database must conform to
