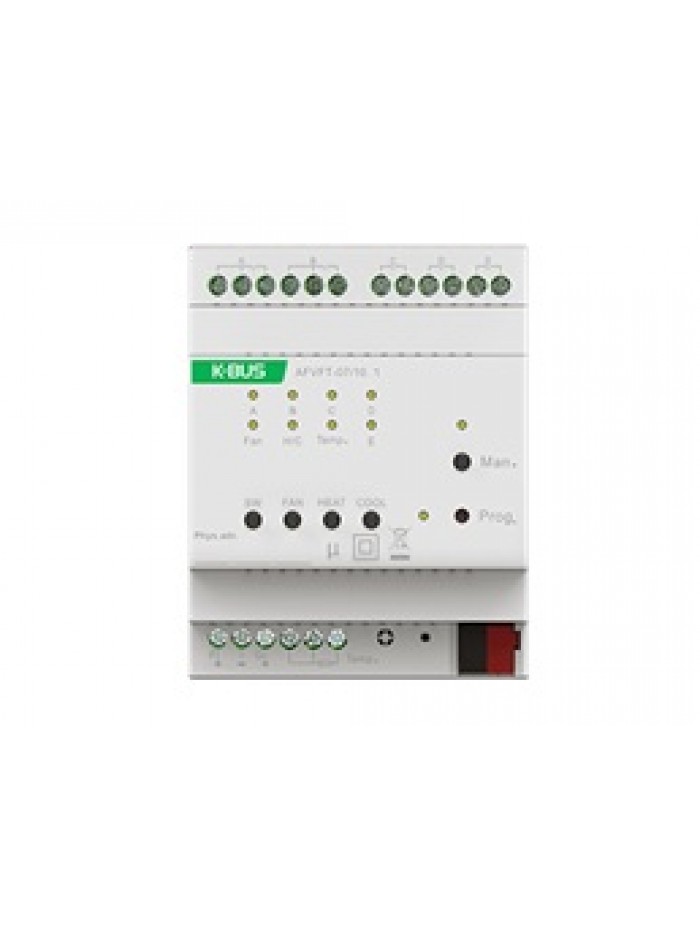

KNX Fan coil Controller, 0-10V AFVFT-07/10.1
- 317.00€ (Ex Tax)
- Availability: 2 (Available)
- Brand: GVS
- Product Code: AFVFT-07/10.1
- Weight: 0.2 kg
- Reward Points: 317
AFVFT-07/10.1
The Fan Coil Actuator with 0-10V is mainly used for the fan and valve control, can be installed in central air conditioning control system. The motor supports 230V AC drive and 24V AC with 0-10V drive interface. The device can be also used to control the lamp. Moreover, it supports manual operation which is on the front ofthe device to facilitate engineering commission.
The Fan Coil Actuator with 0-10V is a modular installation device for fast installation in the distribution board on 35 mm mounting rails to DIN EN 60 715. The electrical connection is implemented by using screw terminals. The connection to the KNX bus is implemented using the supplied bus connection terminal, and no need an extra voltage supply.
The functions of the Fan Coil Actuator with 0-10V is summarized as follows:
- Support the fan with 1-2-3 level fan speed
- Coil control
- KNX/EIB Fan Coil Actuator with 0-10V
- Switch output
- Load drive interface
| Data sheet | |
|---|---|
| KNX Function | Fancoil actuator |
| Laying | DIN Rail |
