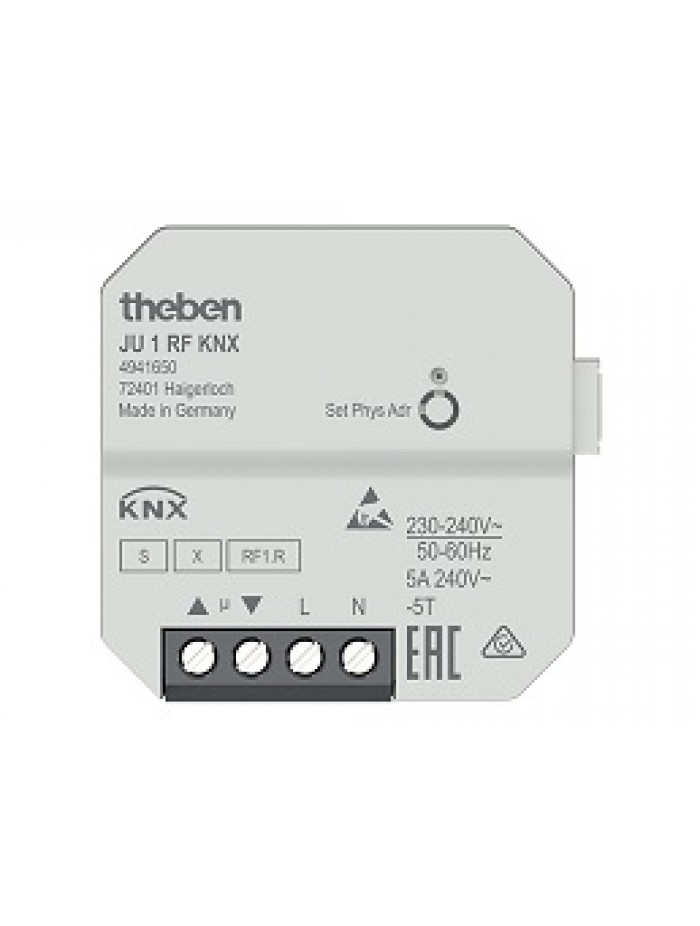

JU 1 RF KNX Recessed Blind Actuator (4941650)
- 1-way wireless flush-mounted blind actuator KNX
- For controlling drives for blinds, roller blinds, sun and vision protection devices, skylights, and ventilation flaps.
- Integrated automatic ventilation function
- Secure communication via KNX-RF with support of "KNX Data secure"

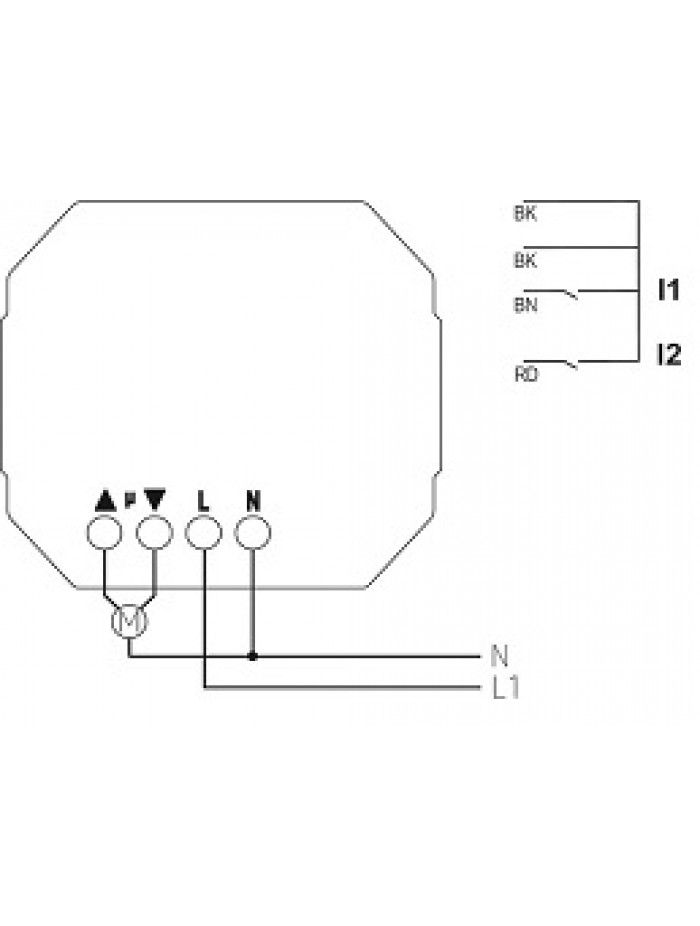

- 2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)
- The binary inputs are assigned to the switch output as standard (function test before programming)
- Integrated temperature monitoring for increased operating safety, e.g. in the event of overload
Operating voltage KNX
| Bus Voltage | | Opereting voltage | 230 V AC 50 – 60 Hz
| Frequency
| 50 – 60 Hz
| | Installation type | Flush-mounted | Type of connection
| Terminal screws | | Channels | 1
| | Type | Base module | | Type of protection | IP 20
| | Protection class | II
|
|
| Data sheet |
| # Input |
2 |
| # Output |
1 |
| KNX Function |
Blind |
| Laying |
Recessed |
-
Data-sheet-JU1KNX_it_en (7.16MB) (Only for logged users)
-
File_vd_Ju_1_rf_knx (213.6KB) (Only for logged users)
