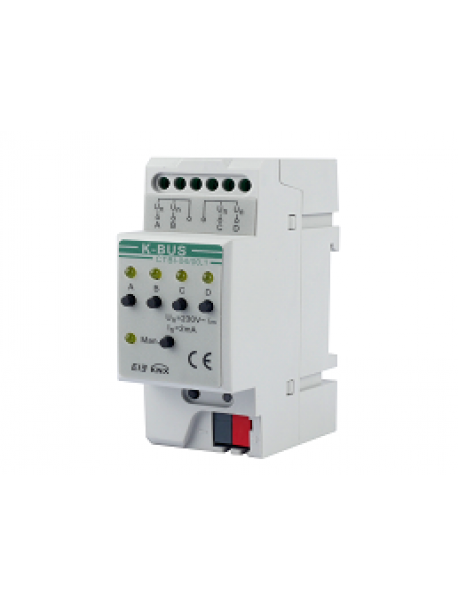

CTBI-04/00.1

The Binary input fulfils the individual demands in functional buildings as well as in residential buildings. In the same way, system planners are provided with varied application possibilities with regard to the implementation of functions. The binary input can install to be system with EIB/KNX bus and other device, and the functions are both simple to operation and intuitive. Users can program it according to the requirement to implement the function systematically. The binary inputs serve as interfaces for operation of EIB/KNX systems via conventional buttons/switches or for coupling of binary signals (signal contacts, such as input 24V~230V).

The binary input has many functions that can be used in a wide variety of application areas. The following list provides an overview:

•  Switch and dimming function. (also 1 button operation)
•  Control of blinds and shutters. (also 1 button operation)
•  Sending of values e.g. temperature values、time etc.
•  Control and storing of light scenes.
•  Operation of various loads by multiple push button actions.
•  Operation of several loads in a fixed switching sequence.
•  Standard counting and differential counting
•  Channel disable/enable function

Each input can take over any of the functions described above. Buttons on the front of the device can be used to simulate the input state. The status of the inputs are displayed by LEDS.
