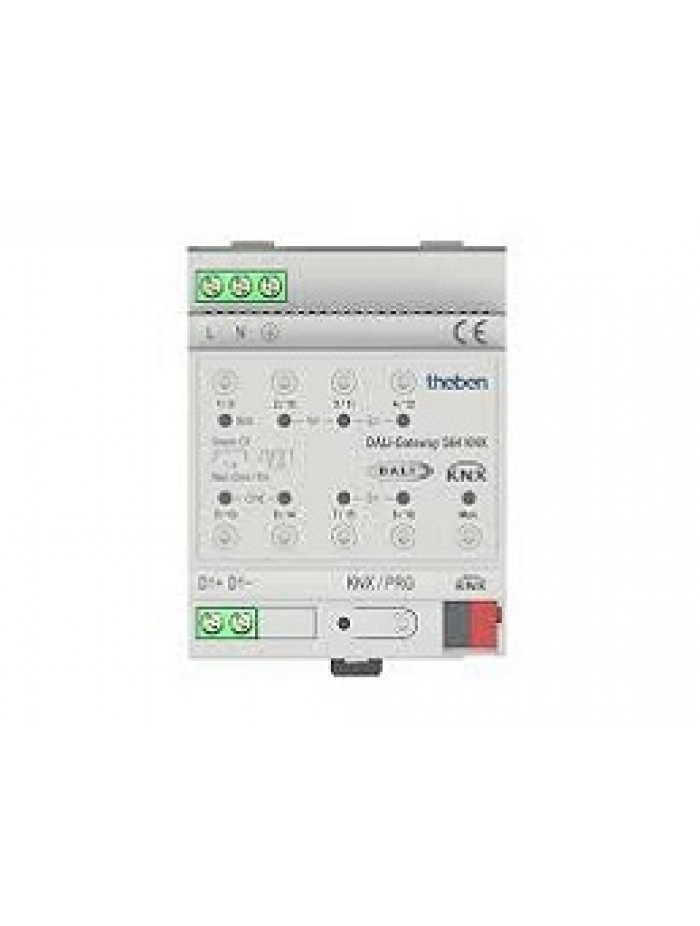

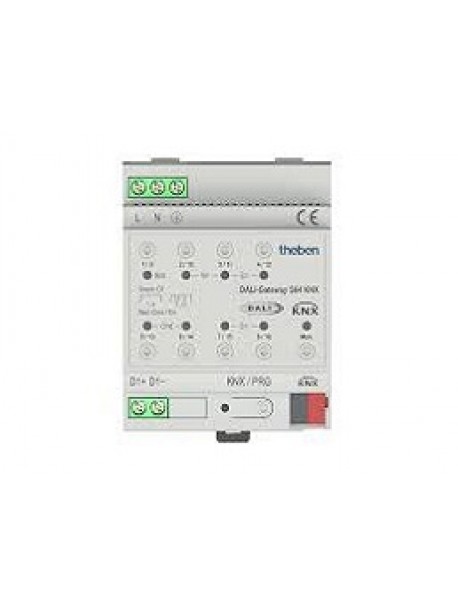

Gateway DALI-KNX S64 (4940301)
- 577.50€ (Ex Tax)
- Availability: 3 (Available)
- Brand: THEBEN
- Product Code: S64 (4940301)
- Weight: 0.3 kg
- Reward Points: 577
KNX-DALI S64
The S64 is an interface between the DALI system and the KNX bus, certified DALI-2. The device has a DALI port where clients can connect up to 64 ECGs.
The available functions are switching, dimming and setting defined value in up to 16 groups. It supports "Device Type 8" (DT8) datatype for controlling light color, brightness and color temperature. The advanced software allows you to integrate the color control function as a function of time (also for Human Centric Lighting applications).
Other additional functions are the scene module with up to 16 different groups and effects for sequential controls.
DALI commissioning takes place via the ETS plug-ins downloadable from the KNX store.
| Data sheet | |
|---|---|
| KNX Function | Gateway DALI |
| Laying | DIN Rail |
- S64-datasheet (115.17KB) (Only for logged users)
- S64-ETS-FILE (9.05MB) (Only for logged users)
