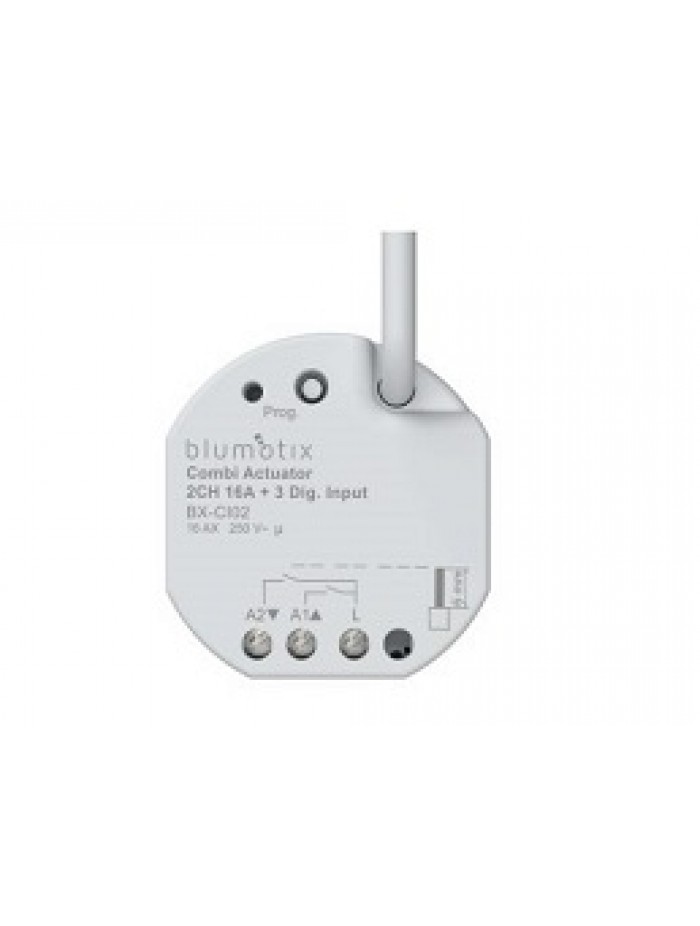

Flush-mounting actuator 2 outputs 3 inputs BX-CI02
- 175.00€ (Ex Tax)
- Availability: 1 (Available)
- Brand: BLUMOTIX
- Product Code: BX-CI02
- Weight: 0.2 kg
- Reward Points: 170
BX-CI02
The BX-CI02 is a switch actuator, 2 channels / blind actuator, 1 channel. The actuator is also equipped with two binary inputs for mounting in a switch box. Potential-free contacts can be connected to them. The two inputs can be blocked independently of each other or perform various functions. It also has an additional binary input allowing for example the connection of a remote temperature probe (NTC).Technical features
- Output via KNX telegrams or controllable external control inputs
- Three external control inputs on connection of dry contacts or condensate/leakage sensors
- NTC temperature probe connectable to input 3
- Probe type R25°C 33 KΩ – B25/100 4300K
- Power supply via KNX, no additional supply voltage needed
- Compatible with KNX Data Secure
- Characteristics of internal control inputs
- Command function Switching
- Control function Brightness adjustment (including color temperature adjustment)
- Blind command function
- Transducer command function (1 byte, 2 byte, 3 byte and 6 byte, including default values for RGBW and color temperature)
- Command function Scenario activation
- Control function 2-channel control
- Control function External control of a controller
- Block functions
- Adjustable suppression time
- Switch functions
NC contact and NO contact operation
- Feedback function
- Link function and forced execution
- Central switching functions with collective feedback
- Timed functions: activation/deactivation delay, staircase light switch with pre-warning function
- Scenario function
- Hour meter
Venetian mode properties
- Suitable for 110…230 V AC motors
- Operating modes “Venetian blind with slats”, “Roller shutter/awning”, “Ventilation flap/roof window”
- Directly operated awning position
- Possibility of directly adjusting the position of the slats
- Motion status feedback, awning position and slat position
- Forced position for higher-level command
- Safety function: 3 independent wind alarms, rain alarm, frost alarm
- Sun protection function with automatic heating/cooling
- Blocking function (blocking protection)
- Scenario function
| Data sheet | |
|---|---|
| # Input | 3 |
| # Output | 2 |
| KNX Function | Binary Output - Blind |
| Laying | Recessed |
- BX-CI02 Data-sheet (913.27KB) (Only for logged users)
- BX-CI02 Manual (40.73MB) (Only for logged users)
- BX-CI02 File ETS (1.29MB) (Only for logged users)
