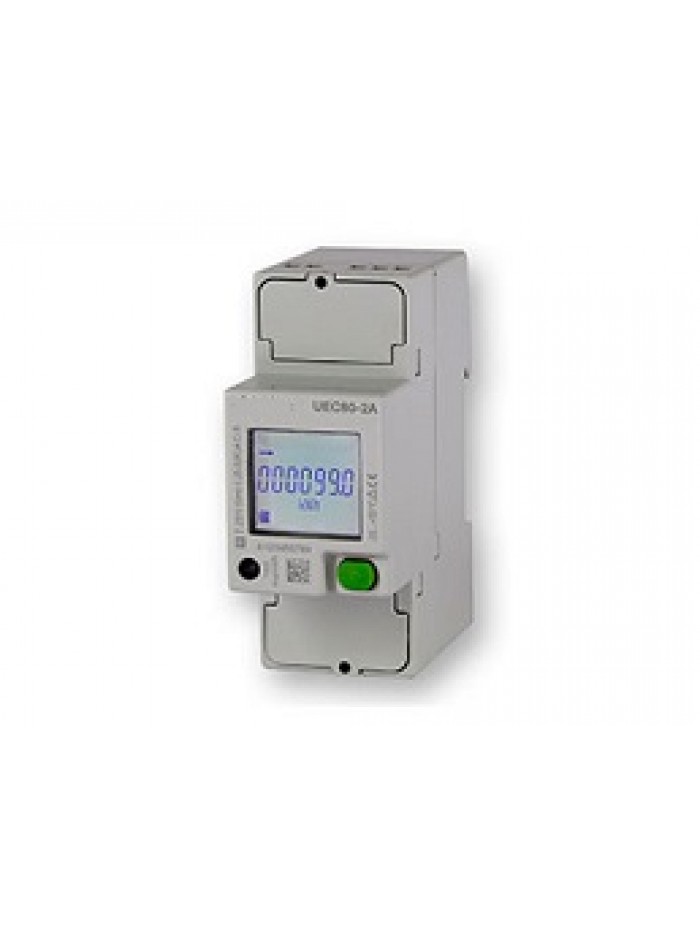

UEC80-2D

The UEC80-2D energy meter is a direct connection instrument up to 80 A, it allows bidirectional measurement on 4 quadrants for all energies and powers. Class B according to EN 50470-3 is equipped with a tariff input and 2 S0 outputs for the retransmission of energy pulses. Convenient to consult locally thanks to the LCD display.

It has an optical port for the communication by interface with other systems.

MID certified.

The UEC80-2D can be used as:

• Totalization of electrical energy in industry by single line or machine.
• Measurement of energy generated from renewable sources such as solar, wind, wave motion, etc.
• Accounting and billing of consumption in campsites, shopping centers, residential centers, docking points in ports, etc.
• Totalization of individual consumption in hotels, congress centers, fairs.
• Accounting of consumption in multi-office structures for executive services.
• Internal distribution of consumption for civil and / or industrial buildings in timeshare.
• Implementation of energy monitoring and control systems.
• Remote detection of consumption and cost calculation.

TECHNICAL DATA

Supply

Self-powered type, supply voltage derived from the measurement circuit

Nominal measurement voltage ± 20%

Maximum consumption: 7.5 VA - 0.5 W

Rated frequency: 50/60 Hz

Voltage

Nominal values:

A) 230 V 50 Hz

B) 240V 50Hz

C) 230 V 50/60 Hz

D) 230 ... 240 V 50/60 Hz

Current

Starting current Ist: 20 mA Minimum current Imin: 250 mA Transition current Itr: 500 mA Reference current Iref (Ib): 5 A Maximum current Imax: 80 A

Precision

Active energy class B according to EN 50470-3

Reactive energy class 2 according to IEC / EN 62053-23

S0 outputs

2 passive optoisolated

Maximum values: 250 VAC-DC - 100 mA

Pulse duration: 50 ± 2ms ON time

Tariff entry

Active optoisolated

Voltage range for tariff 2: 80 ... 276 VAC-DC

Metrological LED

Counter constant: 1000 imp / kWh •

Environmental conditions

Operating temperature: -25 ° C ... +55 ° C

Storage temperature: -25 ° C ... +75 ° C

Relative humidity: 80% max without condensation

Protection degree: IP51 front - IP20 terminals
