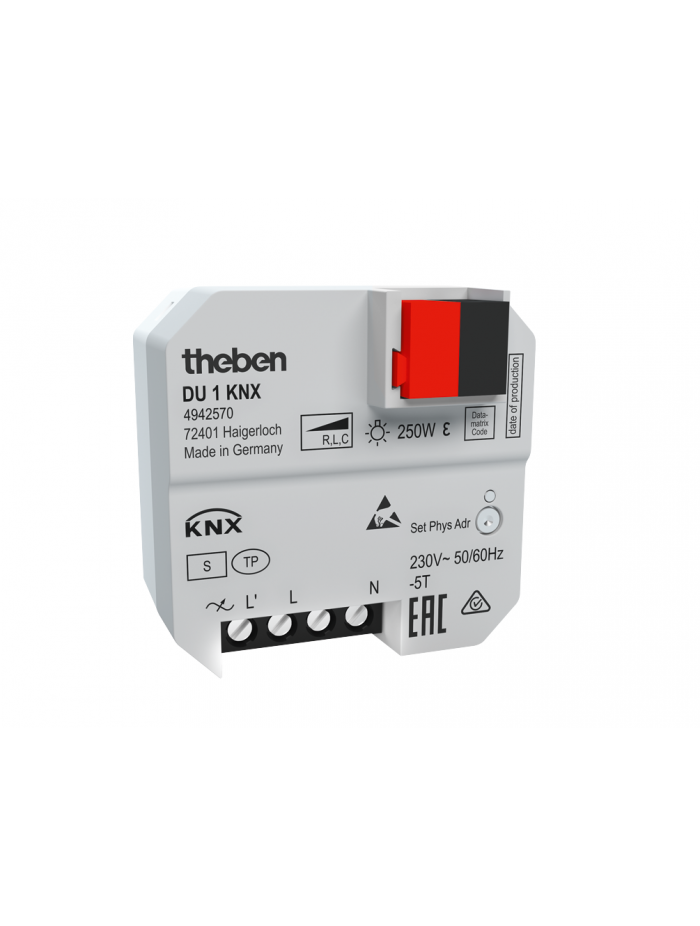

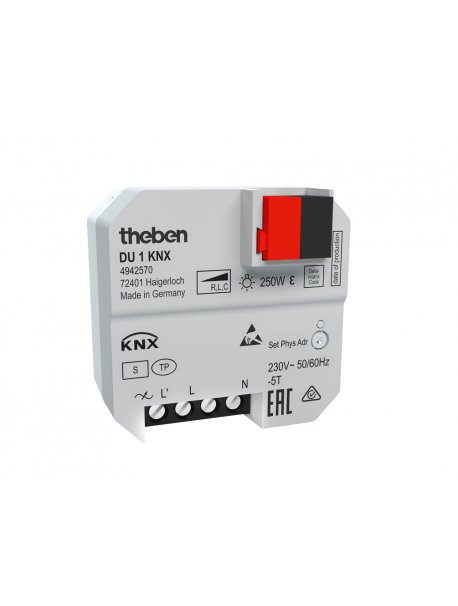

DU 1 KNX Recessed Dimmer (4942570)
- 193.00€ (Ex Tax)
- Availability: 2 (Available)
- Brand: THEBEN
- Product Code: DU 1 KNX (4942570)
- Weight: 0.08 kg
- Reward Points: 155
DU 1 KNX Recessed Dimmer (4942570)
Description Functions
1 channel UP and DOWN universal dimmer with optimized dimmer output for adjustable energy saving lamps, LEDs, incandescent and halogen lamps and for adjustable transformers. Simple adaptation to different lighting by automatic load recognition. Adjustable curve for precise and flicker-free brightness adjustment. The dimmer is equipped with 2 binary inputs for potential-free contacts such as buttons, switches, thermal sensors (I2). The binary inputs are assigned by the factory to output to allow the test operation before programming. Integrated temperature monitoring for increased reliability, e.g. in case of overload.
Technical data
- Operating voltage KNX Bus voltage, ≤4 mA
- Mounting type Recessed
- Type of connection Screw terminals | Bus connection: KNX Bus terminal
- Number of channels 1
- Max load incandescent / halogen lamps 250 W
- Ambient operating temperature -5 ° C ... 45 ° C
| Data sheet | |
|---|---|
| # Input | 2 |
| # Output | 1 |
| KNX Function | Dimmer |
| Laying | Recessed |
- Data-sheet-DU-1-KNX_it (849.09KB) (Only for logged users)
- Data-sheet-DU-1-KNX_en (828.55KB) (Only for logged users)
- File_vd_DU_1_KNX (137.99KB) (Only for logged users)
