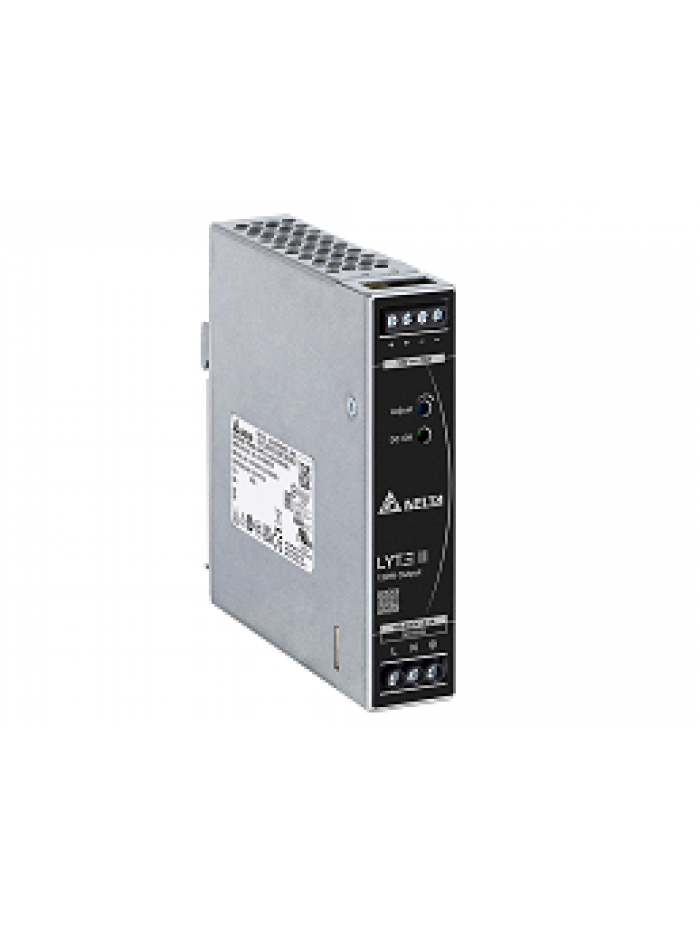

DIN Rail Power Supply Delta DRL-12V120W1EN
- 39.77€ (Ex Tax)
- Availability: 7 (Available)
- Brand: MPL
- Product Code: DRL-12V120W1EN
- Weight: 0.45 kg
- Reward Points: 40
DRL-12V120W1EN
Delta's LYTE II DIN Rail Power Supply series is designed for cost-conscious users who need to meet the essential features needed by many general industrial applications, without compromising quality and reliability. The LYTE II series with convection cooling will operate at full capacity power from -30°C to +50°C, then derating up to +70°C at 230 Vac. It can operate in constant current mode, making it suitable for inductive and capacitive loads. The product is certified according to IEC/EN/UL 62368-1 safety standards. Electromagnetic radiated and conducted emissions comply with the EN 61000-6-4 Class B heavy industry emission standard and the EN 61000-6-2 immunity standard.
The product complies with environmental protection requirements according to the RoHS Directive.
| Data sheet | |
|---|---|
| Laying | DIN RAIL |
| Primary Voltage | 90-264 Vac |
| Secondary Voltage | 12 Vdc |
| Rated Power | 120W |
| Power Supply Case | Metal |
- DRL-xxV120W1EN-data-sheet (1MB) (Only for logged users)
