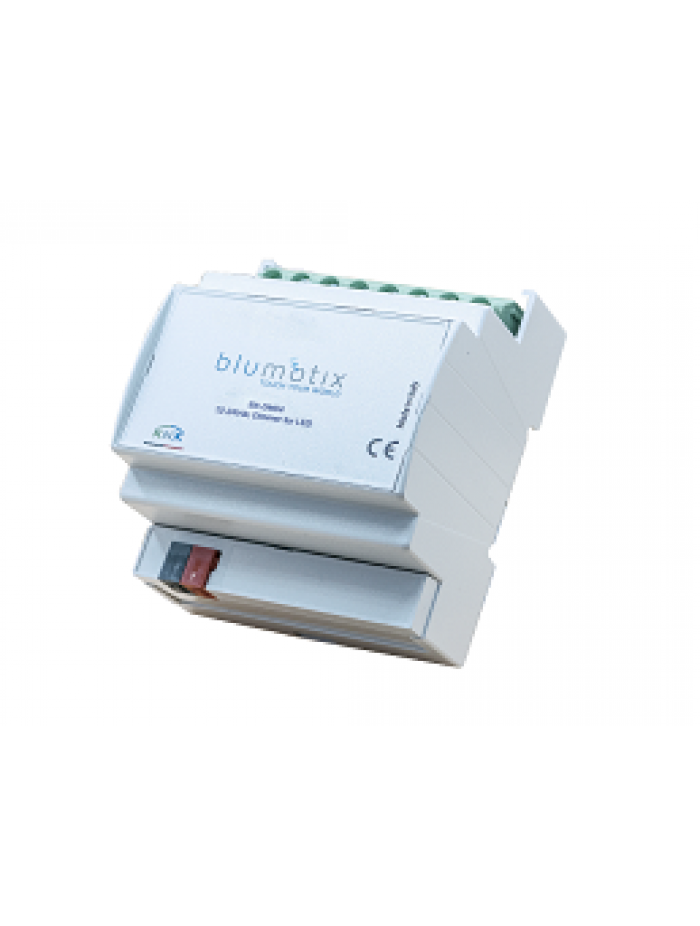

Dimmer LED KNX voltage mode BX-DM04
- 367.00€ (Ex Tax)
- Availability: 1 (Available)
- Brand: BLUMOTIX
- Product Code: BX-DM04
- Weight: 0.16 kg
- Reward Points: 290
BX-DM04
BX-DM04 is KNX 4-channel dimmer actuator for white and RGB LED strips (common anode connection) operating at 12 and 24 Volts.
BX-DM04 allows to supply a max current for each channel of 7.8A, corresponding to a 40 meter RGB led strip (14.4W / ma 24V).It can adjust the brightness by modulating the output voltage of the original power supply with duration pulses programmable (PWM).
The device works with constant input voltages of 12V and 24V.
| Data sheet | |
|---|---|
| # Output | 4 |
| KNX Function | Dimmer LED |
| Laying | DIN Rail |
- File_vd_bx_dm04 (72.36KB) (Only for logged users)
