CSBP-02/00.2

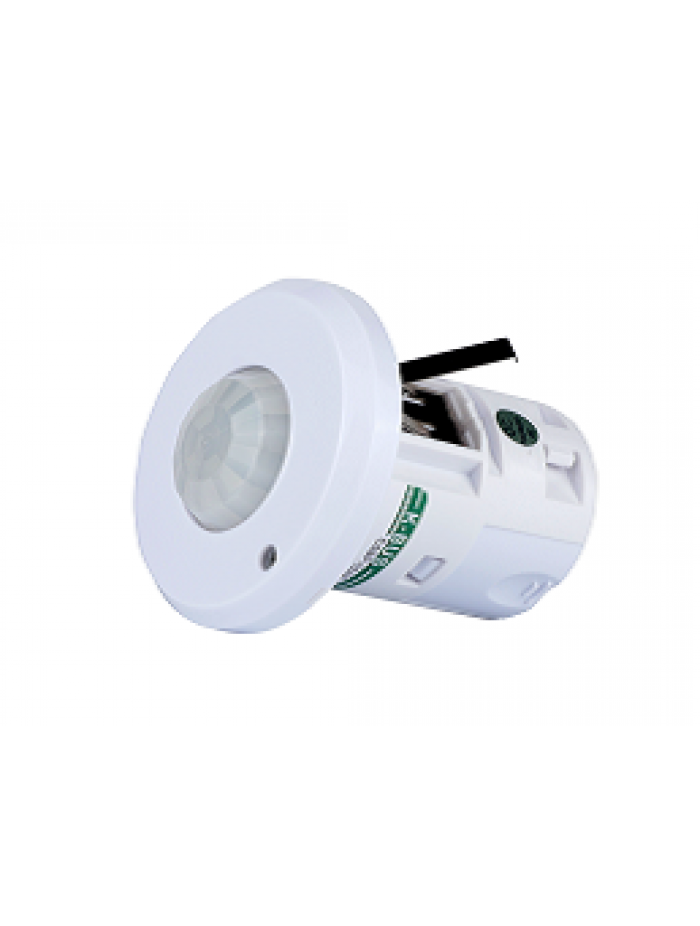

The Sensor CSBP is mainly used in building control systems; it can be connected with other devices via the bus. The Sensor CSBP connects to the bus though the EIB connection terminals without additional supply voltage. The sensor is surfacely mounted mostly on ceiling, firstly drilling then fixed by the left and right shrapnel. It is available to assign the physical address and set the parameters by Engineering design tools ETS with VD2/VD3 (higher than edition ETS2v1.3).It is able to install VD3 file if use ETS3 software. Sensor CSBP is a device that can sense movement signal and brightness signal, and transmit induction information to other devices, such as dimmers, relays. The Sensor CSBP is mainly used with the brightness of the occasion, or the need to monitor the situation, if there is subject movement, and then it will perform actions.

Product functions are summarized as follows：

• Illumination level: 0lux~65535lux, resolution 1lux
• Movement detector area: high sensitivity (4m~5m), low sensitivity(5m~7m)
• illumination output with 3 data types, the values can be sent cyclically
• movement detector output with 3 data types, the values can be sent cyclically
• Illumination with threshold function
• Movement detector sensitivity with level 1~10
• Logic (AND, OR, XOR) function among illumination value, movement detector value and input value, logic output with 3 data types, the output values can be sent cyclically
• Can be set Master-Slave interworking, the master output with 3 data types
• Illumination enabled, Movement detector enabled and logic enabled function
