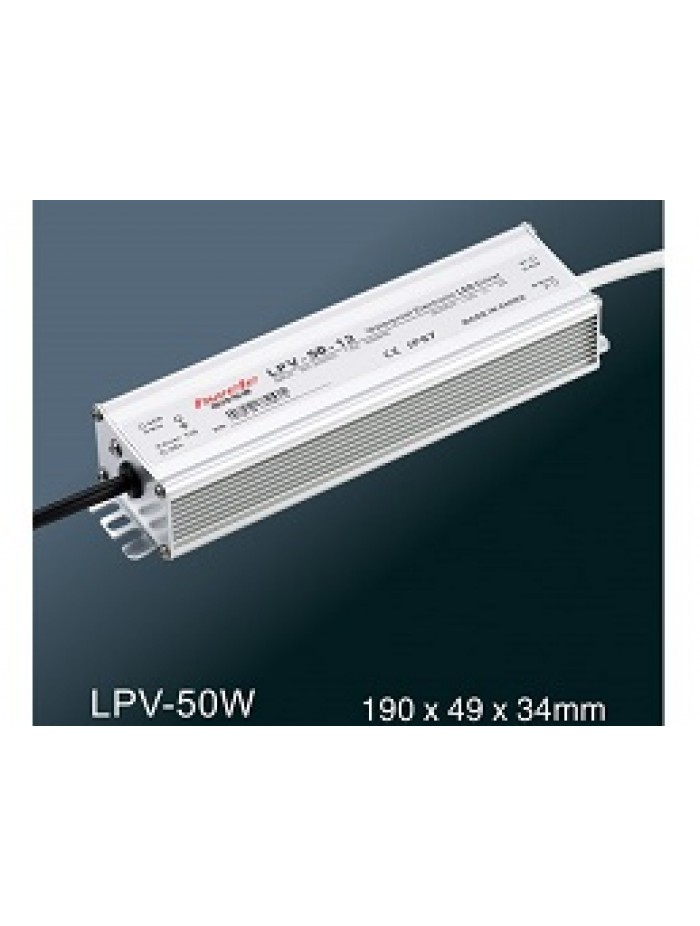

Alimentatore LPV-50W-12V

Model

LPV-50-12

LPV-50-24

LPV-50-36

------

output

DC voltage

12V

24V

36V

------

Voltage tolerance

±1%

±1%

±1%

------

Rated current

4.2A

2.1A

1.4A

------

Current range

0~4.2A

0~2.1A

0~1.4A

------

Rated power

50.4W

50.4W

50.4W

------

Ripple&noise

100mvp-p

150mvp-p

180mvp-p

------

input

Voltage range

170~264VAC，235~373VDC

Frequency

47~63HZ

AC current

0.65A/230VAC

Efficiency

82%

84%

85%

------

Inrush current

Cold start current 35A/230VAC

Leakage current

<1mA/240VAC

protection

Over load

Rated output power 115%~150%start over load protection

Protection type：hiccup mode，auto-recovery after fault condition is removed

Over voltage

15.6~17.8V

30.6~33.2V

42.6~44.2V

-------

Protection type：hiccup mode，auto-recovery after fault condition is removed

Over temperature

Shell temp≥85℃，start over temperature protection

Protection mode：cutoff output，auto-recovery after temperature become normal

environment

Working temp,humidity

-10℃~+60℃，20%~90%RH

Storage temp.humidity

-20℃~+85℃，10%~95%RH non condensing

Withstand vibration

10~500HZ，2G 10min/1cycle，period for 60minutes，each axes

safety

Withstand voltage

I/P-O/P：1.5KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC

Isolated resistance

I/P-O/P、I/P-FG、O/P-FG：100M ohms/500VDC

Fits

tandard

Safety standard

Fit UL1012，IP67 protect level

EMC standard

Fit EN55022，CLASSA

Others

Dimension

190*49*34mm (L*W*H)

Weight/packing

0.53kg/30pcs/17kg/0.025 m³/0.87CUFT

Note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
